Motorhome House Batteries 101: What RV Owners Should Know

Your motorhome’s house batteries are always working behind the scenes. They help keep the lights on, the water flowing, the fans running, and essential 12V appliances powered whether you’re connected to shore power, driving down the highway, or camping miles from the nearest hookup.

Once you unplug, though, your house batteries become even more important. The right setup can give you more freedom to camp where you want, stay off-grid longer, and enjoy the comforts of your motorhome without constantly worrying about running out of power.

Here’s what every RV owner should know about choosing, using, and maintaining motorhome house batteries.

How Motorhome House Batteries Work

Your motorhome’s house battery bank stores the energy used by the everyday systems that make life on the road comfortable. That may include your interior lights, water pump, vent fans, USB outlets, and 12V refrigerator.

When paired with an inverter, your batteries can also provide 120V AC power for equipment that normally plugs into a household outlet, such as laptops, coffee makers, televisions, and other appliances.

House batteries can recharge in several ways, including through:

• The alternator while you drive
• A converter or charger when connected to shore power
• A properly sized solar setup
• A separate battery charger

Having enough stored energy and dependable ways to replace what you use is what makes comfortable off-grid camping possible. Without the right setup, lights, fans, appliances, and other daily needs can quickly drain the available battery capacity.

Types of Deep Cycle House Batteries

Motorhome house batteries usually fall into four groups: flooded lead acid, AGM, gel, and lithium.

Each type has its own price, weight, care needs, usable power, charging needs, and lifespan.

Flooded Lead Acid Batteries

Flooded lead acid batteries are usually the least expensive choice upfront. They’ve been used in RVs for many years, so they’re easy to find and replace.

They also need the most care. You have to check the water levels, add distilled water when needed, and keep them in a space with good ventilation.

It’s also best not to regularly use more than about half of their rated capacity. Their lifespan depends on the battery and how deeply it’s drained, but it’s often measured in hundreds of cycles rather than the thousands available from LiFePO4 batteries.

AGM Batteries

AGM batteries are sealed and don’t need water checks. That makes them easier to own than flooded batteries. They also handle vibration well and may charge faster than traditional flooded lead acid batteries.

Like other lead acid batteries, AGM batteries tend to last longer when they aren’t deeply drained again and again.

Their lifespan varies, but it’s usually measured in hundreds of cycles. Some higher quality AGM batteries may get close to 1,000 cycles under good conditions.

Gel Batteries

Gel batteries use a thick material inside instead of a free-flowing liquid. They don’t need water checks, are less likely to leak, and usually lose their charge slowly while sitting in storage.

The biggest concern is charging. Gel batteries need the right charging settings. Too much charging voltage can damage them and shorten their life.

Before installing a gel battery, make sure your motorhome’s charger or converter supports it.

Lithium Iron Phosphate Batteries

Lithium iron phosphate batteries, also called LiFePO4 batteries, use a chemistry widely considered the current gold standard for house batteries and provide more usable power with much less weight than lead acid batteries.

They can also charge faster with the right equipment and usually last much longer.

Lithium batteries can be discharged deeper without the same wear concerns as lead-acid batteries, while most lead-acid batteries are usually limited to around 50% if you want them to last.

LiFePO4 batteries also hold their charge well in storage, have one of the lowest self-discharge rates, and can handle thousands of charging cycles. They cost more upfront, but the longer life, lower weight, and extra usable power can make them a good choice for people who travel often or camp away from hookups.

Battery Capacity and Power Needs

Battery capacity is measured in amp hours, or Ah, and each RV house battery size tells you how much energy the battery can store.

However, you may not be able to regularly use the full amount shown on the label.

For every 100Ah of rated capacity:

• An AGM battery provides about 50Ah of regularly usable power when you limit discharge to around 50%.
• A lithium battery may provide around 80Ah or more of usable power, depending on the model.

To choose the right house battery bank, start by looking at how much power you use in a normal day.

Lights, vent fans, a water pump, a 12V refrigerator, and small electronics might use around 1,200 to 2,000 watt-hours per day. In a 12V system, that equals about 100 to 170Ah of daily use and gives you a clearer idea of the battery bank’s output.

Your actual use may be higher or lower. It depends on the refrigerator, outside temperature, equipment settings, and how long everything runs.

When choosing your battery size, think about:

• How much power you normally use each day
• How many days you want to camp between charges
• Whether you’ll recharge with solar, shore power, or the alternator
• Which appliances may run at the same time, since discharge rate determines how many devices the battery can support at once
• How much extra power you want to keep in reserve

A 200Ah lithium battery bank may cover one or two days of moderate use, especially if you recharge regularly.

A 300 to 400Ah bank may be a better fit if you stay off grid longer, use more equipment, or can’t always count on strong sunlight.

Here’s a simple example. If your motorhome uses about 800 watt-hours per day, you’ll need around 1,600 watt-hours for two days. In a 12V system, that equals about 135Ah of usable battery power.

After allowing for some extra power and safe battery use, you may need around 300Ah of AGM capacity or about 170 to 200Ah of lithium capacity.

Lithium can provide about the same usable power with much less weight and space.

Installation and Compatibility

Choosing a battery that fits the space is only part of the job. Different battery types charge differently and have their own needs.

Before buying a new battery, check the following.

• Charging equipment: Your converter, battery charger, solar controller, and alternator charging setup need to work with the battery type you choose. Flooded, AGM, gel, and lithium batteries don’t all use the same charging settings.
• Ventilation and placement: Flooded lead-acid batteries release gas while charging and need a ventilated compartment. AGM and gel batteries are sealed, but they still need to stay dry and be held securely in place. Lithium batteries also need a dry, protected location.
• Battery size and weight: Measure the battery space before you buy. Make sure the compartment and mounting parts can safely hold the weight. This is especially important with larger lead-acid banks.
• Temperature: Heat and cold affect every battery type. A discharged flooded battery may freeze in cold temperatures. Most lithium batteries shouldn’t be charged below freezing unless they have internal heating or other cold weather protection. High heat and other extreme temperatures can shorten the life of any battery.
• Wiring and fuses: A larger or more powerful battery bank may need thicker cables, different fuses, or other changes. The cables need to be the right size, the connections need to be tight, and the system needs proper protection.
• Matching batteries: Batteries in the same bank should usually be the same type, voltage, size, model, and about the same age. Mixing different batteries may cause uneven charging and poor performance.

Lithium batteries also include a battery management system, or BMS. It helps protect the battery from being overcharged, drained too far, exposed to too much current, or used at unsafe temperatures.

The BMS is helpful, but it doesn’t replace the need for the right charger, wiring, and fuses.

Before replacing or adding batteries, look at the full setup. Check the batteries, charger, solar controller, wiring, and fuses together. This matters even more when changing battery types or adding more capacity.

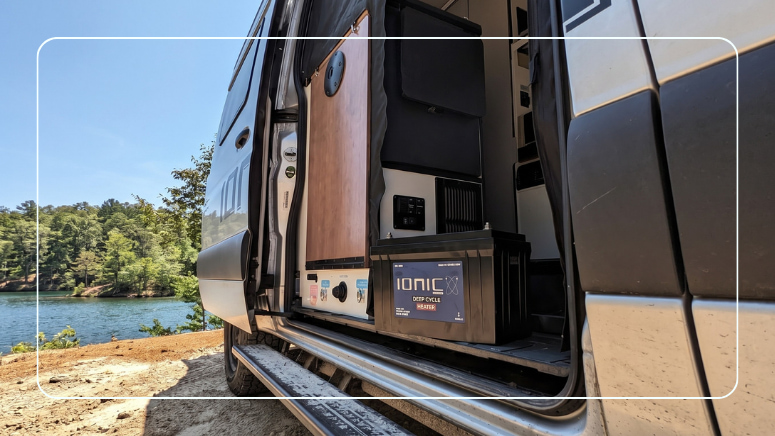

Temperature and Seasonal Use

Weather can make a big difference in how your batteries work, and temperature is critical to battery performance and lifespan.

Cold weather reduces, to some extent, the amount of power available from most batteries. A discharged flooded lead-acid battery may even freeze and crack in very cold weather.

AGM and gel batteries may also provide less power when temperatures drop.

Lithium batteries need special care during charging. Most shouldn’t be charged below freezing unless they have a heater or another type of cold weather protection.

For regular winter travel, look for:

• A battery with a built-in heater that warms the battery before charging
• A BMS that stops charging when the battery is too cold
• Support for an outside battery heating system

Hot weather matters too. Flooded batteries lose water faster in the heat. AGM, gel, and lithium batteries may also perform less effectively and wear out faster when the battery compartment stays hot.

Good airflow and protection from direct heat can help during summer. In winter, an insulated battery space or heated lithium battery may help.

Storage needs also vary. Lithium batteries usually hold their charge well while sitting unused. Lead-acid batteries tend to lose power faster and may need to be charged more often during the off-season.

Always follow the battery maker’s storage directions because the right charge level and temperature range can vary.

Battery Monitoring and Care

It’s much easier to manage your batteries when you know how much power is left.

A battery monitor may show:

• Charge level
• Battery voltage
• Power moving into or out of the battery
• Current power use
• Charging activity
• Estimated time remaining

Voltage alone may not always give you a clear picture of how much power remains. This is especially true with lithium batteries because their voltage stays fairly steady through much of the charge.

Many lithium batteries now include Bluetooth monitoring. Every Ionic deep cycle battery includes Bluetooth, so you can use the Ionic app to check the charge level, voltage, temperature, cycle information, and battery activity.

That may be enough for many RV owners. Larger battery systems may still need a separate monitor that tracks the full battery bank.

The amount of care you need to provide depends on the battery type. Flooded lead-acid batteries need the most attention. You may need to check the water, add distilled water, clean corrosion from the terminals, and use an equalization charge when the battery maker recommends it.

AGM and gel batteries don’t need water, but you should still watch for charging problems, loose cables, and batteries that are being drained too far.

Lithium batteries need less regular care. You should still check the cables and connections, review the battery information, and follow the charging and storage directions.

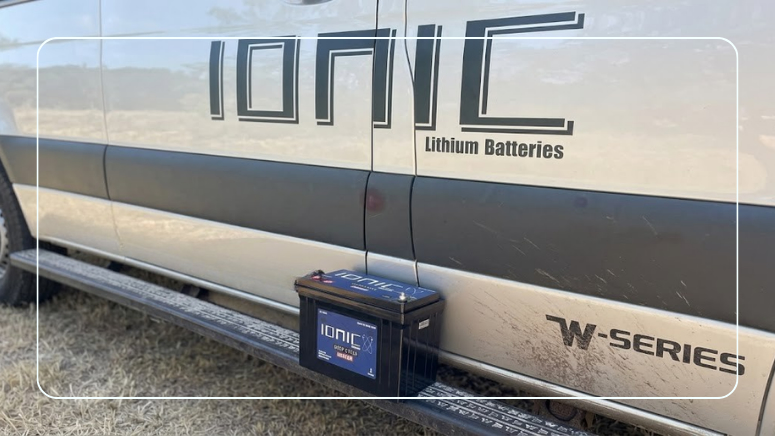

When to Replace Your House Batteries

House batteries don’t always fail without warning. You may first notice that they don’t last as long, take longer to charge, or struggle to run your equipment.

Signs You May Need New Batteries

It may be time for new batteries if waiting until one is completely dead could leave you without usable power

For example:

• Your motorhome can’t make it through the night without a major loss of power
• Lights dim when several things are running
• Appliances struggle or shut off
• The batteries take much longer to charge
• You often get low voltage warnings
• The batteries provide much less runtime than before
• The batteries no longer reach or hold a full charge
• You notice cracks, leaks, swelling, corrosion, or other damage

Don’t wait until your next trip to deal with a cracked, leaking, or swollen battery. Damaged batteries should be handled right away.

Good Times to Make an Upgrade

You don’t have to wait for your batteries to fail completely.

It may make sense to replace or add batteries:

• Before a long road trip in your rig
• Before moving into your RV full time
• When adding solar panels
• When adding a larger inverter or new appliances
• When your current bank no longer covers your daily needs
• During off-season maintenance
• When you want more usable power without adding as much weight

Planning ahead gives you time to compare your choices while shopping, check the charging setup, and decide which upgrade is the better choice for your travel style and daily needs before you depend on it.

Battery Lifespan and Long-Term Cost

The least expensive battery today may not be the least expensive battery over time, especially when you consider what you spend upfront versus across the life of the battery bank.

Lead-acid batteries often last around three to five years, while many Ionic lithium batteries last 10+ years and deliver around 3,000 to 5,000 charge cycles. Actual battery life depends on how often it’s used, how deeply it’s drained, how it’s charged, where it’s stored, and the temperatures it faces. Lead-acid battery life is usually measured in hundreds of cycles.

Lithium batteries also provide more usable power from each charge. That means you may be able to get the power you need with fewer batteries.

When comparing cost over time, look at:

• Battery lifespan
• Number of charging cycles
• Usable capacity
• Replacement costs
• Charging speed
• Regular care
• Weight
• Available space

Weight matters in a motorhome. A lithium battery bank can provide the same usable power as a much heavier lead-acid setup while taking up less room, and compared with lead-acid over the long term, it often gives better overall value.

That can help you stay within your motorhome’s weight limits and put less stress on the battery compartment.

For people who travel often or regularly camp away from hookups, lithium may offer better value over time.

Upgrade Your Motorhome With Ionic Lithium Batteries

Ionic LiFePO4 RV batteries are built for rugged, dependable power on the road. They use Grade A cells and include a built-in BMS that helps protect the battery from overcharging, draining too far, too much current, and unsafe temperatures.

Every Ionic deep cycle battery also includes Bluetooth. The Ionic app lets you check the charge level, voltage, temperature, cycle information, and battery activity from your phone.

Depending on the models, Ionic batteries may also include:

• Built-in heating for cold weather charging
• More than one terminal connection for easier installation
• Lightweight, compact designs that save space and weight
• More usable power from each charge
• Faster charging with the right equipment
• An impressive 11-year limited warranty

Whether you’re replacing an old lead-acid bank or building a larger setup for solar and off-grid camping, LithiumHub can help you choose the right battery and equipment to serve how you use your motorhome.

Ready for more dependable power on the road? Shop our Ionic lithium RV batteries or contact the LithiumHub team for help choosing the right fit.
