About the Product

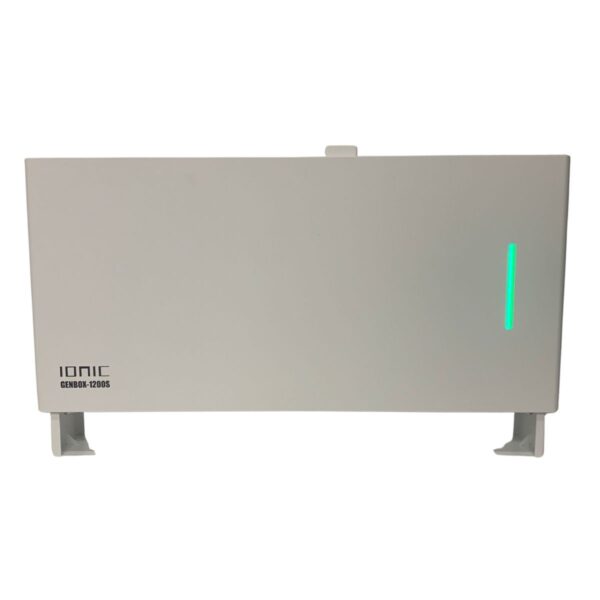

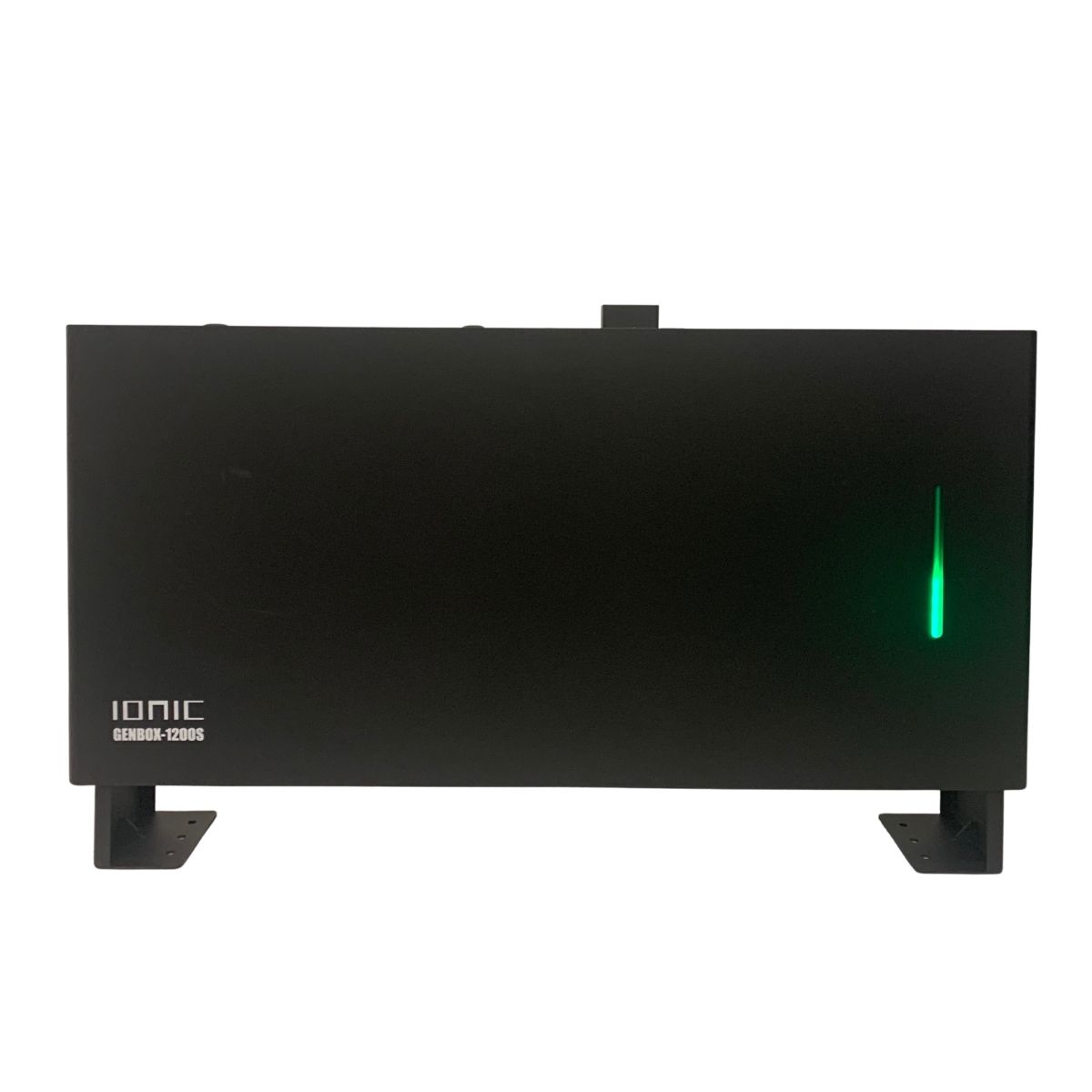

The Ionic GenBox 1200S Slim represents a fundamentally different approach to home backup power. Unlike portable power stations you move around as needed, the 1200S is designed to stay in place—wall-mounted or on a floor stand—always plugged in, always charged, always ready to automatically protect your refrigerator, freezer, or other essential appliances during power outages.

While portable GenBox models excel at flexibility and mobility, the GenBox 1200S “Slim” excels at reliability and “set it and forget it” protection.

The Problem It Solves

During power outages, most people face a critical question: How do I keep my food from spoiling?

A refrigerator full of groceries represents hundreds of dollars of investment. A chest freezer might contain a family’s meat supply for months. When the power goes out, the clock starts ticking—you have 4-6 hours before food begins to spoil, and 24-48 hours before everything is ruined.

You install it once, and it protects your investment 24/7 for years.

The Distributed Backup Approach

Here’s the strategic insight behind the GenBox 1200S: Instead of one massive power station trying to run your entire home, use multiple smaller units to protect specific critical loads in different areas.

Traditional whole-home backup approach:

• One large power station (or generator) in garage or basement
• Run extension cords to appliances throughout the house
• Cord management nightmare
• Trip hazards
• Voltage drop over long cable runs
• All your eggs in one basket

GenBox 1200S distributed approach:

• Unit #1: Installed at kitchen refrigerator
• Unit #2: Installed at basement chest freezer
• Unit #3: Installed at bedroom for CPAP machine
• Unit #4: Installed at home office for router/modem/computer
• Unit #5: Installed near sump pump

Each unit protects its specific load automatically. No cords to run. No single point of failure. Clean, distributed, reliable protection.

During extended outages, you can strategically recharge units using a generator or solar—run the generator for short periods to charge up all your GenBox units, then shut it down and run silently on battery power for the rest of the day.

Built for 5,000 Cycles

The GenBox 1200S uses automotive-grade LiFePO4 battery cells rated for an exceptional 5,000 cycles to 70% capacity retention—the longest lifespan of any GenBox model.

Get 13+ years of use with 5,000 cycles

Even after 5,000 full cycles, the battery retains 70% of its original capacity (967Wh instead of 1,382Wh)—still plenty for backup applications.

Why longer life matters for stationary use:

Since the 1200S stays plugged in continuously, it’s designed for this constant cycling behavior. Many power stations degrade faster when left plugged in long-term, but the 1200S is engineered specifically for this use case. The extended cycle life means:

Extend your runtime even further with the Output Smart Cycle feature in the app. This patented feature allows you to program simple power intervals and stretch your runtime to approximately 18 hours—about 3x longer than continuous operation.

• Set it up once and rely on it for 10-15+ years
• No battery replacements needed
• Lower total cost of ownership
• Environmental responsibility (one unit for a decade+ vs. replacing cheaper units every few years)

UPS: Seamless Protection

The GenBox 1200S includes sophisticated UPS (Uninterruptible Power Supply) functionality:

Normal operation (grid power available):

• GenBox passes wall power through to your appliance (bypass circuit)
• Appliance runs on grid power (no battery drain)
• Battery stays fully charged and ready
• Minimal efficiency loss (<10%)

Power failure (grid down):

• GenBox Slim detects loss of grid power instantly
• Switches to battery power in less than 20 milliseconds
• Appliance never stops running
• No interruption to cooling, no temperature rise
• Automatic switchover requires zero user intervention

Power restoration (grid returns):

• GenBox detects grid power return
• Switches back to bypass mode
• Battery recharges automatically
• Ready for next outage

This seamless operation means:

• Your refrigerator never knows the power failed
• Food temperature never rises
• Compressor doesn’t cycle off and on unnecessarily
• Medical devices maintain continuous operation
• No alarms, no interruptions, no manual steps

You could be away on vacation when an outage occurs. The GenBox 1200S will automatically protect your refrigerator, and by the time you return home, everything will be fine—you might not even know there was an outage.

Smart Bypass Circuit

The bypass circuit is a critical feature that separates the GenBox 1200S from simple battery backups:

Without bypass (basic battery systems):

• All power flows through the battery and inverter continuously
• Battery cycles unnecessarily
• Inverter runs constantly (wear and heat)
• Higher electricity costs

With smart bypass (GenBox 1200S):

• Appliance gets clean grid power directly (bypass circuit) during normal operation
• Battery only activates during actual outages
• Battery stays fresh with minimal cycling
• Inverter only operates when needed
• Lower electricity costs, longer component life

This intelligent design maximizes efficiency and lifespan while maintaining instant protection.

Triple Your Runtime During Outages with Output Smart Cycle

Extend 6 hours to 18+ hours with intelligent power cycling

The GenBox 1200S includes Output Smart Cycle—an exclusive feature that can triple your backup runtime during extended outages by intelligently cycling power on and off to your appliances.

Here’s how it works:

Your refrigerator doesn’t need to run continuously. It only needs power periodically to maintain temperature. With Output Smart Cycle, you program custom on/off intervals through the GenBox app:

Example cycle:

• Power ON: 2 hours (refrigerator runs normally)
• Power OFF: 4 hours (refrigerator stays cold with door closed)
• Repeat: Cycle continues automatically

The result: Instead of approximately 6 hours of continuous runtime, you can extend protection to 18+ hours on the same battery charge—without your food warming up.

Why This Works

Modern refrigerators are well-insulated. When you stop opening the door, they can maintain safe food temperatures for 4-6 hours without power. Output Smart Cycle takes advantage of this by:

• Running your refrigerator for 2 hours to cool it down
• Letting it rest for 4 hours (door stays closed, food stays cold)
• Automatically powering it back on before temperatures rise
• Repeating the cycle for as long as your battery lasts

You control the timing based on what you’re powering and your specific needs.

Real-World Application

During a 20-hour outage:

Without Output Smart Cycle:

• Base unit (1.38kWh): ~6 hours of continuous refrigerator runtime
• Result: Battery dies after 6 hours, food at risk for remaining 14 hours

With Output Smart Cycle:

• Same base unit, programmed 2 hours on / 4 hours off
• Result: 18+ hours of protection, food stays cold entire outage

How to Set It Up

1. Download the GenBox app (iOS/Android)
2. Connect via Bluetooth (works even when WiFi is down)
3. Enable Output Smart Cycle
4. Set your intervals: Choose ON duration and OFF duration
5. Start cycle: GenBox automatically manages power cycling

Example interval settings:

• Conservative: 2 hours ON / 3 hours OFF (extends runtime 2.5×)
• Balanced: 2 hours ON / 4 hours OFF (extends runtime 3×)

Expandable Capacity: Build Your System

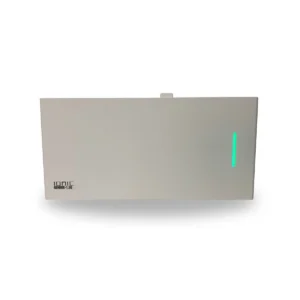

The GenBox 1200S supports stacking up to 4 external battery modules (GENBOX-1.3B), dramatically increasing system capacity:

Configuration options:

Base unit only: 1,382Wh

• Runtime: 6-8 hours for typical refrigerator
• strong>Output Smart Cycle Extend your runtime up to 18 hours with the convenient feature in the Ionic GenBox App.
• Best for: Single appliance backup, short outages, budget-conscious

Base + 1 module: ~2.76kWh

• Runtime: ~12 hours for refrigerator
• Runtime with Output Smart Cycle: up to 36 hours for refrigerator
• Best for: Extended outages, larger appliances, peace of mind

Base + 2 modules: ~4.14kWh

• Runtime: ~18 hours for refrigerator (~full day)
• Runtime with Output Smart Cycle: up to 54 hours for refrigerator
• Best for: Multi-day outages, multiple appliances, serious preparedness

Base + 3 modules: ~5.52kWh

• Runtime: ~24 hours for refrigerator (1.5+ days)
• Runtime with Output Smart Cycle: up to 72 hours for refrigerator
• Best for: Extended grid-down scenarios, off-grid living, maximum security

Expansion benefits:

• Start small, expand as needs grow or budget allows
• Stack modules vertically with provided mounting brackets
• All modules charge and discharge together as one system
• Proportionally increased runtime without increasing power output
• Build the exact capacity you need

When to expand:

• You experience outages longer than 6-8 hours regularly
• You want to power additional appliances beyond the primary one
• You live in areas with unreliable grid infrastructure
• You have critical medical equipment requiring extended runtime
• You want multi-day protection without generator recharging

Pure Sine Wave for All Appliances

The GenBox 1200S delivers 1200W of pure sine wave AC power—the same quality as grid electricity:

Why pure sine wave matters:

• Refrigerators and freezers run more efficiently and quietly
• Variable-speed compressors operate correctly without stress
• Electronic controls on modern appliances function properly
• Medical equipment operates safely and reliably
• No humming or buzzing from motors or transformers

What you can power (1200W limit):

• Full-size refrigerators (150-200W)
• Chest or upright freezers (80-150W)
• Refrigerator + freezer simultaneously (250-350W combined)
• Sump pumps (500-800W during operation)
• Home office equipment (200-400W)
• Medical equipment (CPAP, oxygen concentrators, 50-200W)
• Wi-Fi routers and modems (10-20W)
• Multiple devices simultaneously up to 1200W total

What exceeds capacity:

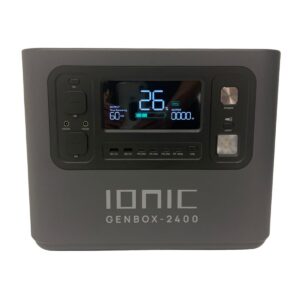

• Microwave ovens (typically 1000-1400W)—would need GenBox 2400
• Space heaters on high (typically 1500W)—use medium setting (750W) if needed
• Multiple high-draw appliances simultaneously exceeding 1200W combined

The 1200W output covers the vast majority of single-appliance backup scenarios—refrigerators, freezers, and essential equipment.

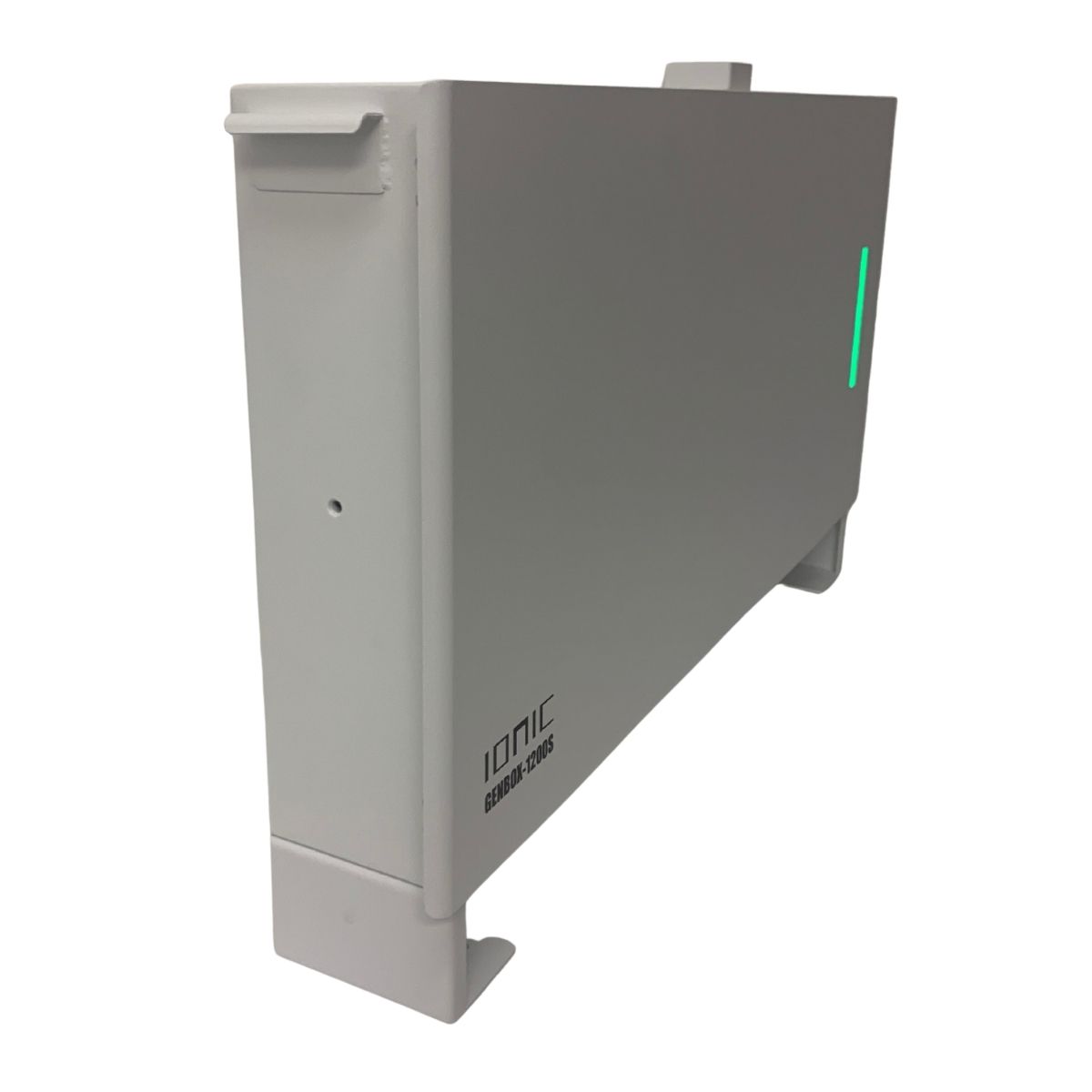

Slim Profile for Clean Installation

The “Slim” designation isn’t just marketing—it’s a fundamental design choice:

Dimensions: 25.4″ × 3.8″ × 12.0″

• Height: 25.4″ (about 2 feet)
• Depth: 3.8″ (less than 4 inches—remarkably thin)
• Width: 12″ (one foot)

This slim profile enables:

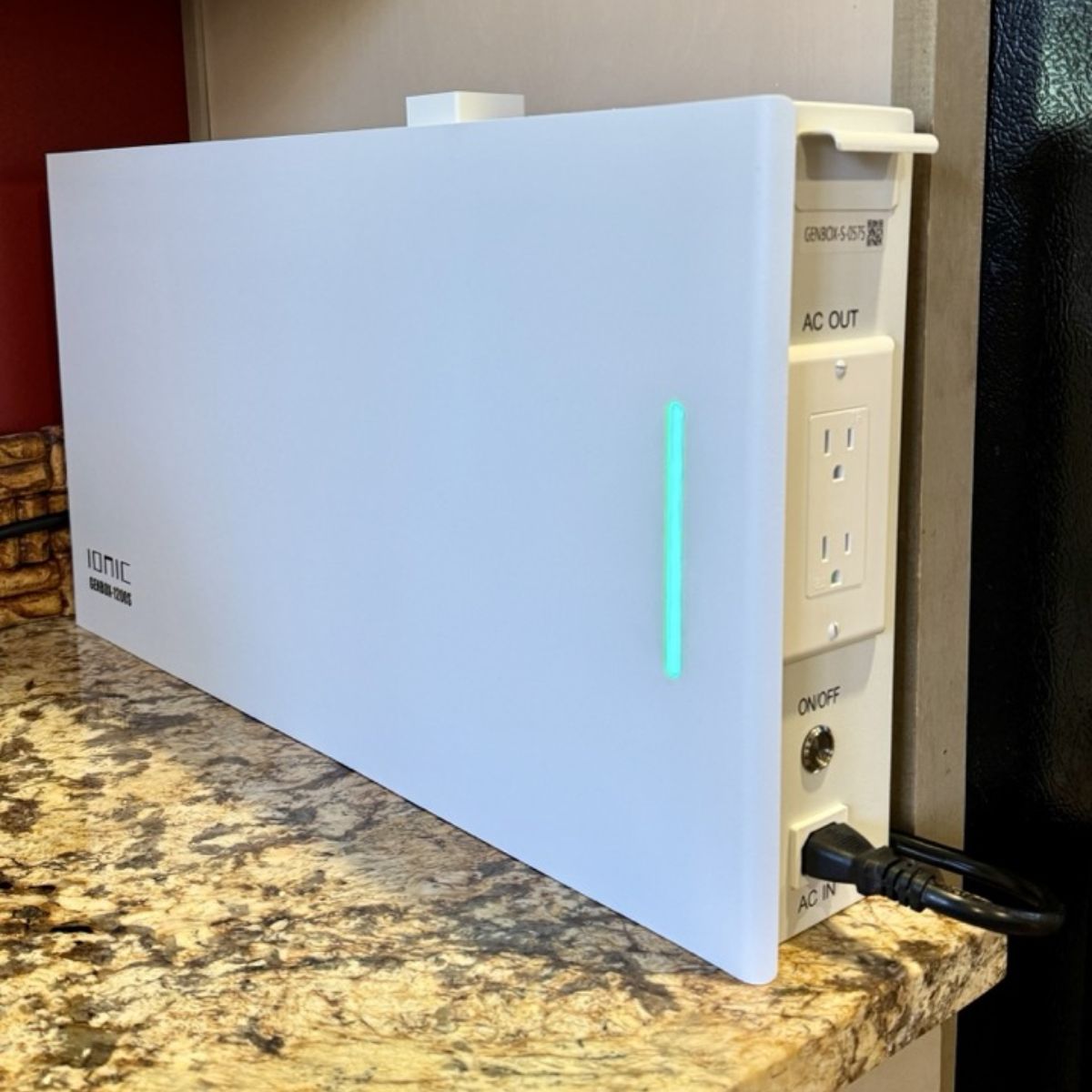

Wall-mounting:

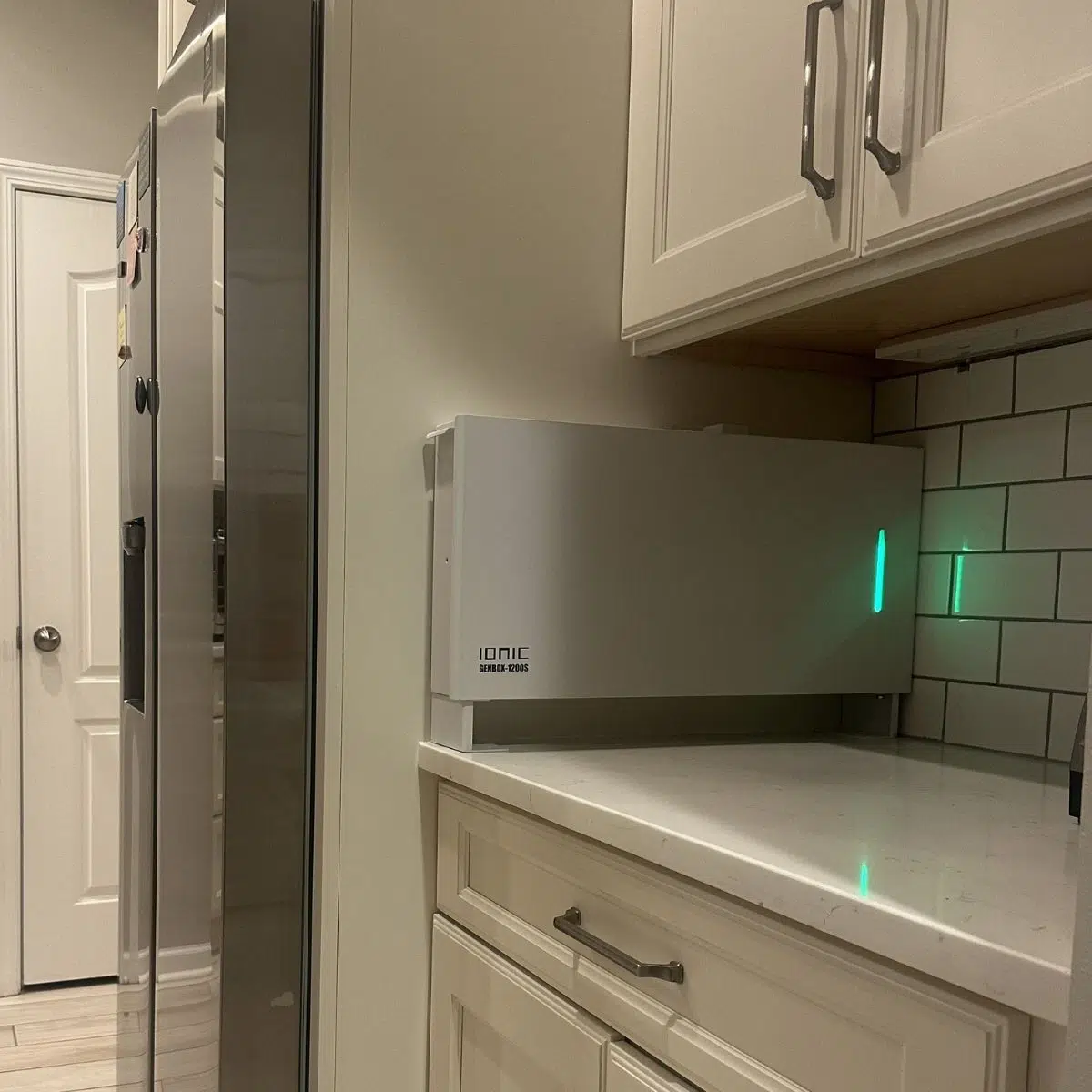

• Mount vertically on wall near your refrigerator or in utility room
• Takes up virtually no floor space
• Professional, clean appearance
• Safe from flooding (elevated above floor level)

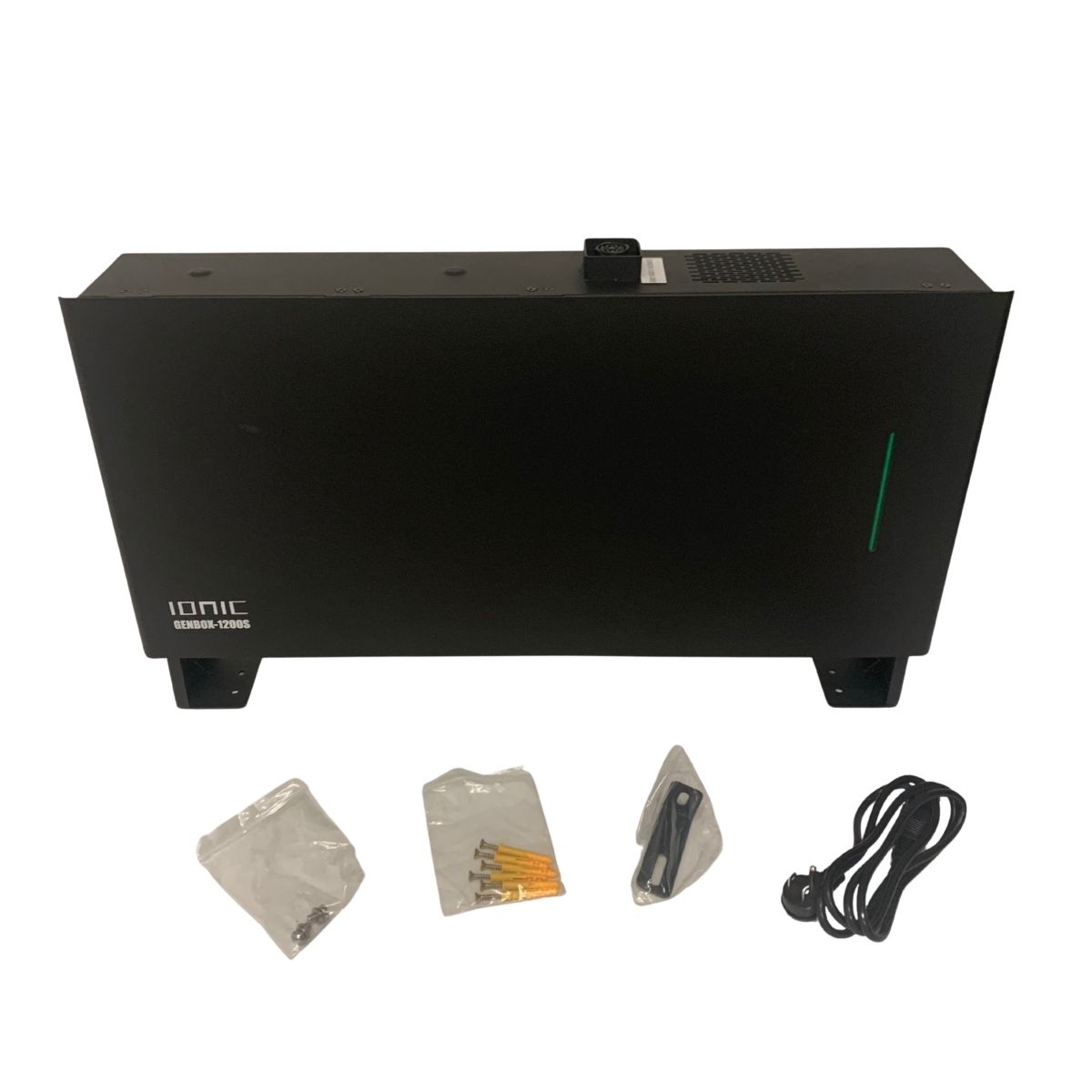

• Includes mounting bracket hardware

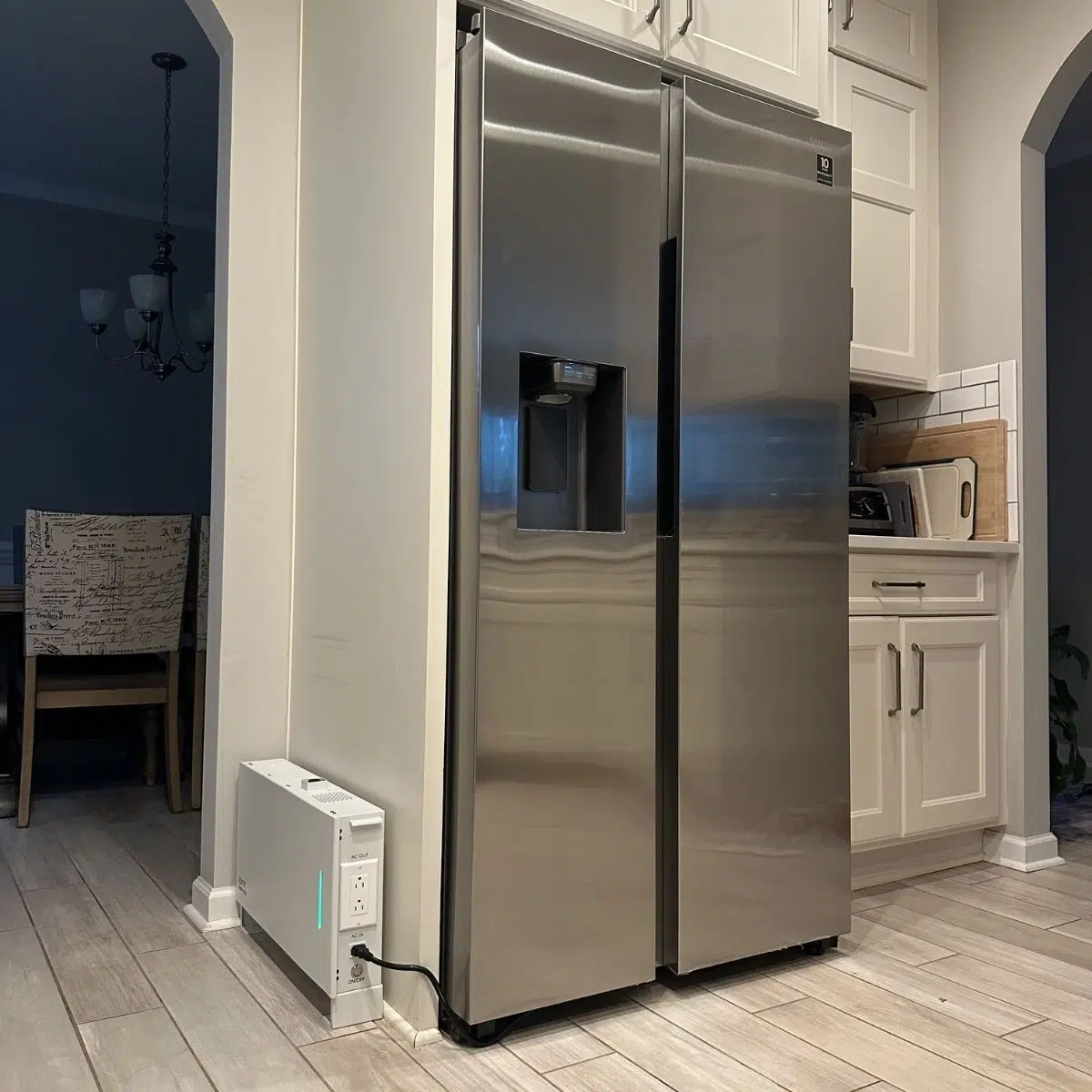

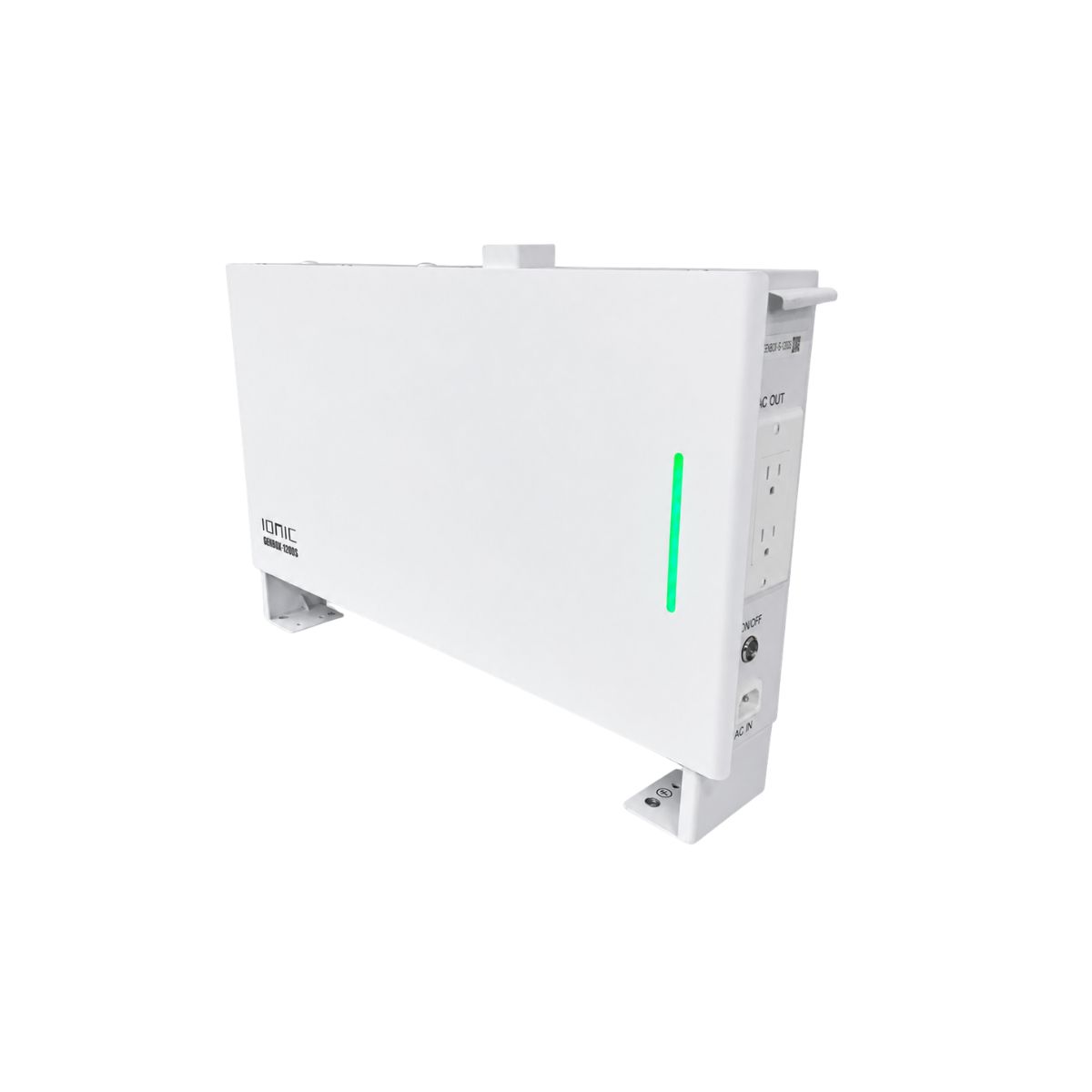

Floor-standing:

• Use included floor stand/bracket

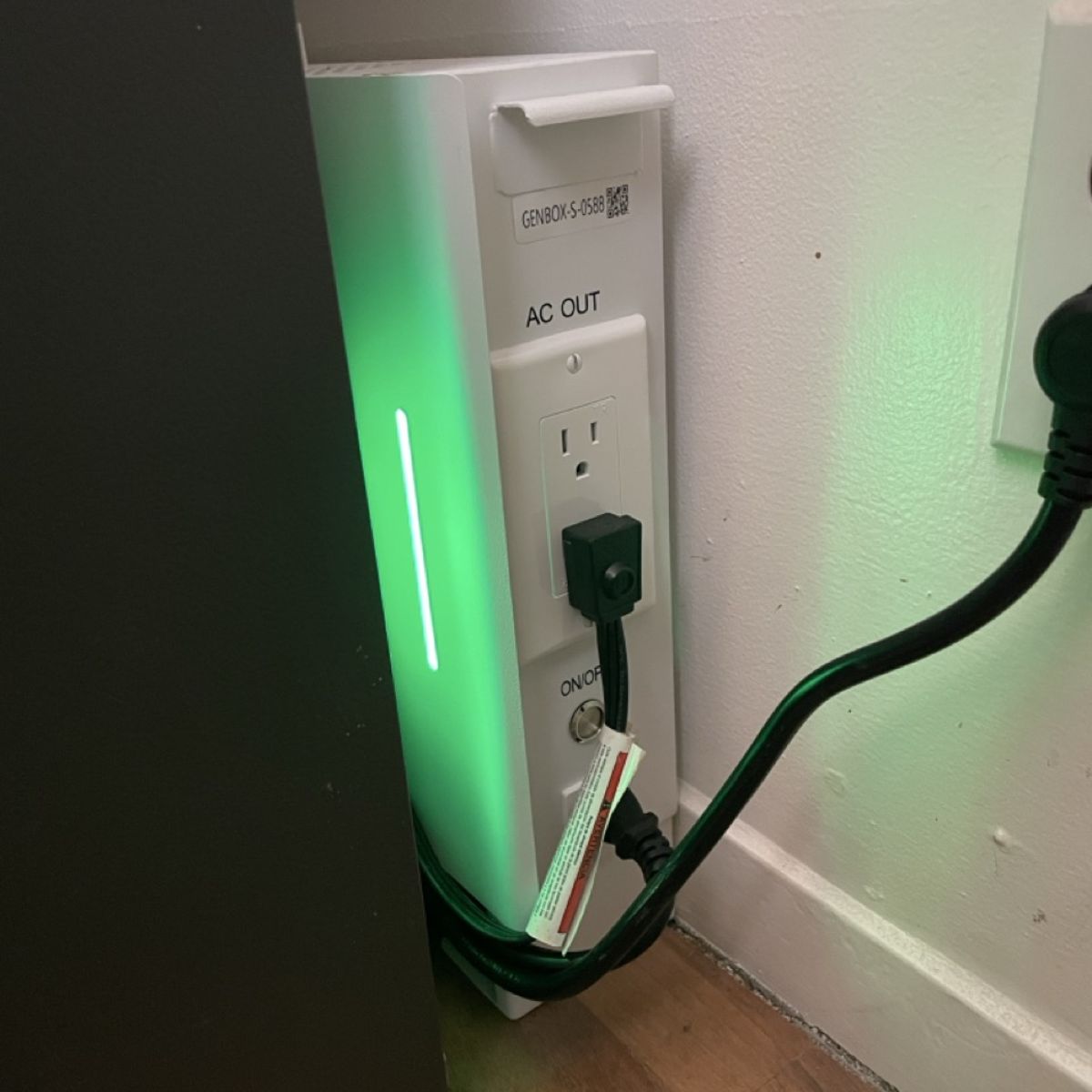

• Tuck behind or beside appliances
• Minimal footprint (12″ × 3.8″ base)
• Stable even with stacked battery modules

Multiple-unit installations:

• Stack battery modules vertically using side brackets
• Clean, integrated appearance
• All modules bolt together as one unit
• Professional installation aesthetic

Compare to portable power stations that are typically 12″ × 12″ × 9″ or larger—the GenBox 1200S’s slim profile makes it far less intrusive for permanent installation.

Designed for Stationary Use

Important distinction: The GenBox 1200S is NOT designed to be portable. It weighs 33 lbs, has no wheels or portable handles, and is meant to be installed and left in place.

Why stationary design is better for home backup:

No portability compromises:

• Battery cells optimized for stationary cycling (5,000 cycle rating)
• No need for rugged external housing (slimmer profile)
• Weight not a concern (can use heavier, higher-capacity cells)
• No wheels, handles, or portability features taking up space

Installation advantages:

• Wall-mount capability (portable units can’t do this)
• Clean, permanent installation
• Professional appearance
• Always in the right place when outage occurs
• Can’t be accidentally moved or unplugged

When you need portability: Choose the portable GenBox models (100W, 400W, 800W, 1200W, 2400W) for:

• Camping and outdoor recreation
• Mobile work and job sites
• Moving power between locations
• Vehicle-based living (RV, van life)
• Temporary or flexible backup needs

When you need stationary protection: Choose the GenBox 1200S for:

• Dedicated refrigerator/freezer protection
• Permanent home backup systems
• Medical equipment that stays in one room
• Home office networking equipment
• Any appliance or system that doesn’t move

Fast Recharge for Quick Recovery

The GenBox 1200S features ultra-fast charging:

AC Fast Charging: Approximately 1.5 hours for full recharge

• 1382Wh capacity / ~900W charging rate
• Among the fastest recharge in its capacity class
• Plug in after an outage, ready for the next one quickly

Why fast recharge matters:

For extended multi-day outages: Many users employ this strategy:

1. Run GenBox overnight and through the day on battery (6-8 hours)
2. Fire up generator for 1.5 hours to fully recharge GenBox
3. Shut generator down, run silently on battery again
4. Repeat daily as needed

This approach:

• Minimizes generator fuel consumption (1.5 hrs/day vs. 24 hrs/day)
• Reduces noise (1.5 hrs vs. constant generator drone)
• Extends generator life (hundreds of hours vs. thousands)
• Saves money (fuel costs cut by 90%+)
• Provides quiet nights and days with only brief generator noise

For solar recharging (optional DC charging kit):

• 400W max solar input with optional external DC charging kit
• Full recharge in 4-5 hours of good sun (with 400W panels)
• Enables renewable daily cycling for off-grid scenarios

The fast recharge capability makes the GenBox 1200S practical for extended outages where you’re cycling between battery and generator/solar—you’re not waiting all day to recharge.

Real-World Use Cases

Scenario 1: Refrigerator Protection

Problem: “We live in an area with frequent power outages during storms. Last year, we lost two refrigerators full of groceries—nearly $600 worth of food. I was tired of throwing money away.”

Solution: Install GenBox 1200S between wall outlet and refrigerator. Set it and forget it.

Result: “We’ve had eight power outages in the past six months. Some lasted 10 minutes, some lasted 12 hours. We didn’t lose a single item of food. The GenBox automatically protected our fridge every time—we weren’t even home for three of the outages. Best investment we’ve made.”

Scenario 2: Distributed Multi-Appliance Protection

Problem: “I needed backup power for my refrigerator, chest freezer, and home office (work from home—can’t lose internet). One large power station in the garage meant running extension cords everywhere. It was ugly and impractical.”

Solution: Three GenBox 1200S units:

• Unit 1: Kitchen refrigerator
• Unit 2: Basement freezer
• Unit 3: Home office (router, modem, laptop)

Result: “Clean installation, no cords running through the house, everything protected automatically. During a recent 18-hour outage, I kept working all day, food stayed cold, and we never left the house. Neighbors were at hotels or eating out—we barely noticed except for the lights being off.”

Scenario 3: Medical Equipment Backup

Problem: “My wife uses an oxygen concentrator at night. A power failure could be life-threatening. We had a gas generator, but you can’t run those indoors, and the noise was terrible. Plus, I had to wake up and manually start it when power failed—unacceptable for medical equipment.”

Solution: Ionic GenBox 1200S Slim plus add-on batteries (2 expansion batteries) installed in bedroom near oxygen concentrator.

Result: “The UPS function means her oxygen never stops—the transition is seamless. With the expanded capacity, we have 24+ hours of runtime. We sleep through the night even during outages, knowing the system has her covered. No generator noise, no fumes, no manual intervention. This is medical-grade reliability.”

Scenario 4: Off-Grid Cabin

Problem: “We have a cabin with no grid connection. We were running a gas generator 24/7 to keep our refrigerator running. Fuel costs were outrageous, and the constant noise ruined the peaceful cabin experience.”

Solution: GenBox 1200S with 400W solar panels and optional DC charging kit.

Result: “The fridge runs off the GenBox overnight, panels recharge it during the day. We only use the generator as backup on cloudy days. Fuel consumption dropped 90%, peace and quiet returned to our cabin. It’s truly off-grid now—solar, silent, and sustainable.”

Scenario 5: Sump Pump Protection

Problem: “Our basement floods during heavy storms, which often knock out power. The sump pump needs power precisely when the grid is most likely to fail. We came home once to six inches of water and thousands in damage.”

Solution: GenBox 1200S with base + 1 expansion module near sump pump.

Result: “During the last major storm, power was out for 11 hours. The GenBox kept the sump pump running the entire time—basement stayed dry. Now we have permanent protection.”

Multiple Units Strategy

One of the most effective uses of the GenBox 1200S is deploying multiple units throughout your home:

Why multiple smaller units beat one large unit:

Advantages:

• No extension cords — Each unit plugs in right where you need it
• Distributed reliability — One unit failing doesn’t take down everything
• Prioritized protection — Protect most critical loads first, expand as budget allows
• Clean installation — Professional appearance, no cord spaghetti
• Easier to manage — Recharge or maintain one unit without affecting others
• Scalable investment — Start with one, add more over time

Recommended multi-unit strategy:

Priority 1: Refrigerator (most critical for most families)

• Start with one GenBox 1200S for kitchen refrigerator
• Protects your food investment
• Highest ROI (prevents spoilage)

Priority 2: Freezer

• Add second GenBox 1200S for basement/garage freezer
• Protects long-term food storage (often more valuable than fridge contents)

Priority 3: Home Office / Medical Equipment

• Add third GenBox for critical non-food needs
• Work-from-home continuity or health equipment

Priority 4: Additional Critical Loads

• Sump pump, well pump, security systems, etc.
• Build comprehensive distributed backup system

Total investment scales with your needs and budget:

This modular approach is more affordable and practical than buying one massive whole-home system upfront.

Generator Integration

The GenBox 1200S is designed to work synergistically with generators, not replace them:

Traditional generator-only approach:

• Run generator continuously during outages (24 hours/day)
• High fuel consumption (1-2 gallons per day)
• Constant noise
• Wear and tear on generator
• Expensive and intrusive

GenBox + Generator hybrid approach:

• Run generator 1.5-2 hours per day to recharge GenBox(es)
• Run on silent battery power the other 22 hours
• Drastically reduced fuel consumption (90%+ savings)
• Quiet operation 90% of the time
• Extended generator life (hundreds of runtime hours vs. thousands)
• Lower costs, better experience

Example daily schedule:

• 8:00 AM: Start generator
• 9:30 AM: GenBox fully recharged, shut down generator
• Rest of day/night: Run silently on battery
• Next morning: Repeat if outage continues

Multiple GenBox units: During generator runtime, charge all your GenBox units simultaneously:

• All units plugged into generator outlets
• 1.5-2 hours charges all units
• Distributed protection all day/night

This hybrid approach provides the best of both worlds:

• Generator’s high output for fast charging
• Battery’s silence and indoor-safety for daily operation
• Fuel efficiency and cost savings
• Practical for extended multi-day outages

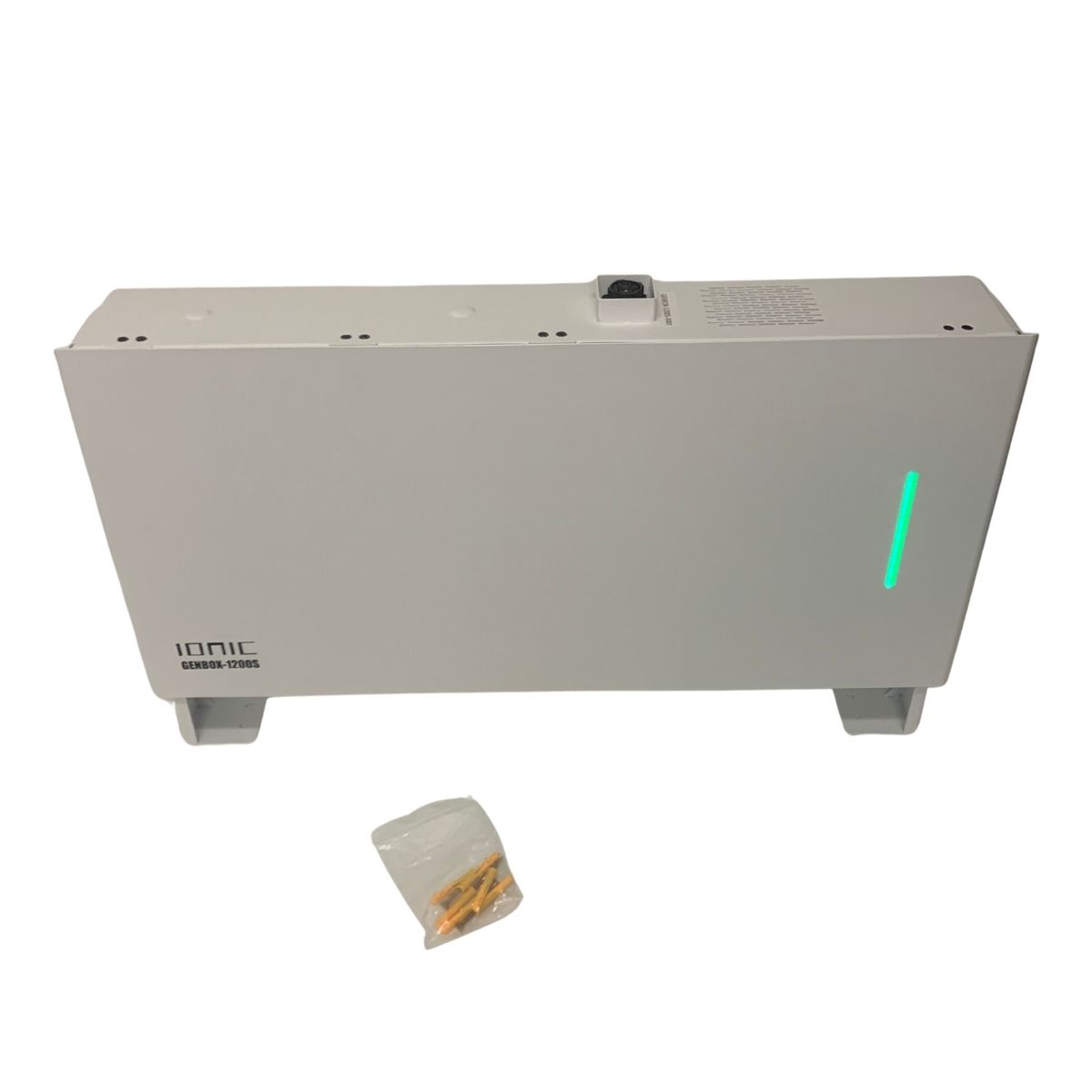

What’s Included

Your GenBox 1200S package includes:

• GenBox 1200S Slim unit (pre-charged to ~30%)
• AC charging cable
• Wall-mounting bracket / Floor stand
• Installation hardware
• User manual with setup instructions and safety guidelines

Expansion modules purchased separately: GENBOX-1.3B battery modules (if desired)

Warranty & Support

The GenBox 1200S includes a 3-year limited warranty covering:

• Manufacturing defects
• Battery capacity degradation within rated specifications
• Electrical component failures
• BMS and inverter issues

Lifetime U.S.-based technical support helps you with:

• Installation questions
• Troubleshooting
• Optimization advice
• Expansion planning

Why Choose Ionic GenBox 1200S?

Set-It-and-Forget-It Protection: Automatic UPS operation requires zero user intervention
Longest Battery Life: 5,000 cycles means ~13+ years of daily use
Smart Bypass Circuit: Efficient grid passthrough saves energy and extends component life
Expandable Capacity: Start with 1.38kWh, expand to 5.52kWh as needed
Distributed Backup Strategy: Deploy multiple units for comprehensive home protection

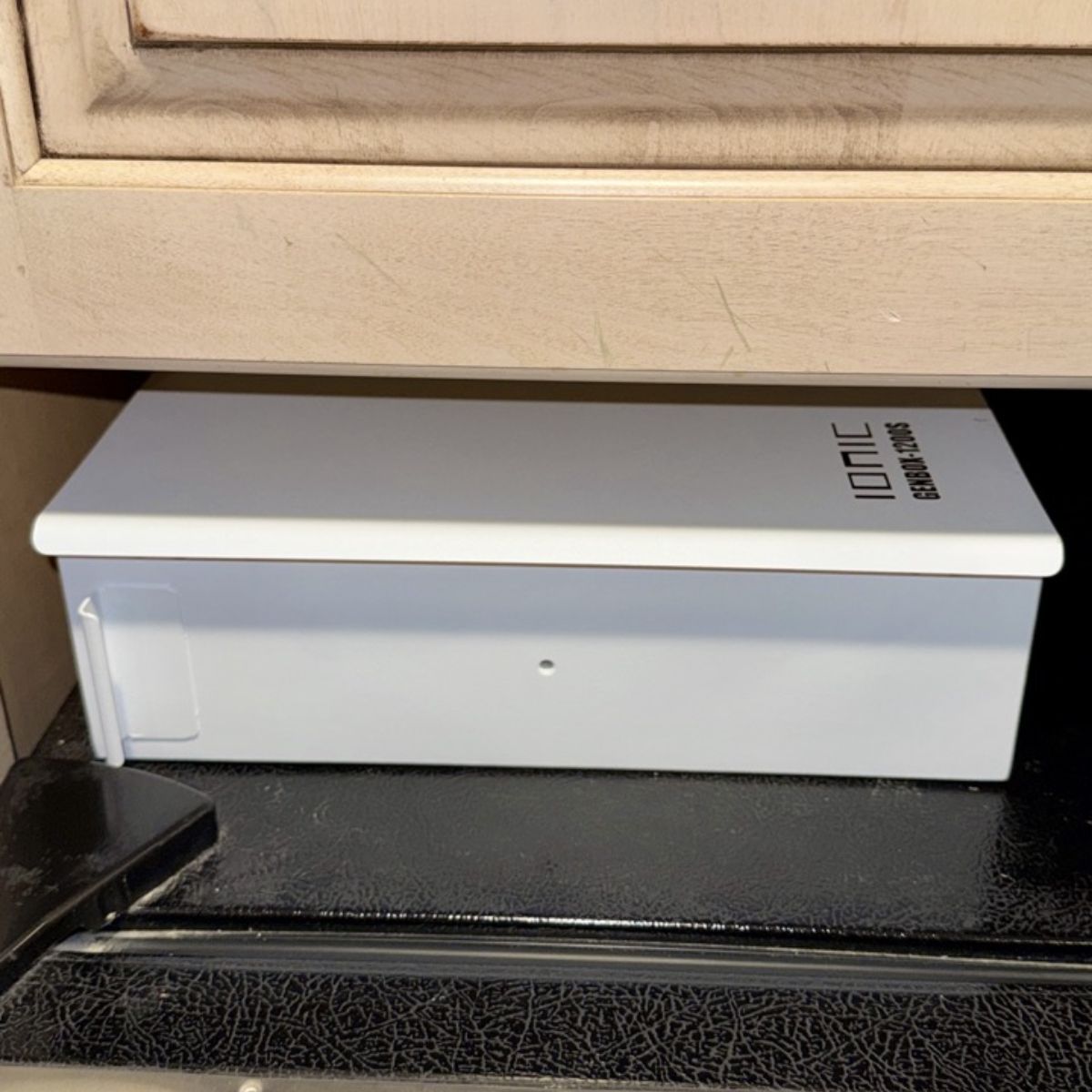

Slim Profile: Wall-mount or floor-stand installation with minimal footprint
Generator-Friendly: Integrate with existing generators for efficient hybrid backup
3-Year Warranty: Solid warranty coverage plus lifetime support

The GenBox 1200S Slim isn’t just backup power—it’s an insurance policy for your food, your comfort, and your peace of mind. Install it once, rely on it for years.
