Best Solar Battery Bank: What to Look for Before You Buy

When the power goes out, or you need electricity far from the grid, a solar battery bank can provide a dependable source of stored power. It can support lights, appliances, electronics, pumps, and other equipment, depending on the size and design of the system.

Solar battery banks are commonly used in RVs, boats, cabins, off-grid properties, and emergency backup systems. Solar panels collect energy during the day, while the batteries store it for use after dark, during cloudy weather, or whenever your equipment needs more power than the panels are producing.

The best solar battery bank isn’t simply the one with the most capacity. The batteries, solar panels, charge controller, inverter, wiring, and other components all need to work together. Here’s what to consider before choosing a battery bank and building your solar power system.

How Solar Battery Banks Work

A traditional solar battery bank consists of one or more deep cycle batteries used to store electricity generated by solar panels. The solar panels produce DC electricity, and a solar charge controller manages the power moving from the panels to the batteries.

The batteries also provide DC power. If you need to operate standard household appliances or other AC equipment, an inverter converts that stored DC electricity into AC electricity.

A complete off-grid solar battery system may include:

• Solar panels
• One or more deep cycle batteries
• A compatible solar charge controller
• An inverter for AC equipment
• Battery cables and solar wiring
• Fuses, breakers, and disconnects
• Battery monitoring equipment
• Mounting and protective equipment

Each component needs to match the battery voltage, solar array, expected electrical load, and charging requirements. Choosing a large battery without properly sizing the rest of the system can lead to slow charging, limited output, or compatibility problems.

What to Look for in a Solar Battery Bank

It’s easy to assume that more battery capacity is always better. However, a larger solar battery bank costs more, takes up more room, and requires enough solar input to recharge it within a reasonable amount of time.

The goal is to build a system with enough stored energy for what you plan to run without buying more battery capacity than your solar panels and charging equipment can support.

Battery Capacity

Battery capacity tells you how much energy the battery bank can store. Deep cycle batteries are commonly rated in amp hours, or Ah, along with their voltage.

You can estimate a battery’s nominal energy storage in watt hours by multiplying the voltage by the amp hour rating. For example, a 12V 100Ah battery stores approximately 1,200Wh of nominal energy.

Actual usable energy may be lower because of inverter losses, temperature, battery settings, and other system conditions. The amount of runtime you receive will also depend on how much power your equipment uses.

A higher capacity provides more runtime, but it doesn’t necessarily mean the system can operate every appliance. Battery capacity affects how long your equipment can run. The inverter determines how much AC power the system can provide at one time.

Battery Chemistry

Battery chemistry affects the bank’s weight, usable capacity, maintenance requirements, charging performance, and service life.

Many newer solar battery banks use lithium iron phosphate, better known as LiFePO4. These deep cycle batteries are lighter than traditional lead acid batteries, require no watering or acid maintenance, and are designed to handle repeated charging and discharging.

LiFePO4 batteries can also provide more usable capacity than comparable lead acid batteries because they can generally be discharged more deeply without the same effect on battery life.

Lead acid batteries may cost less upfront, but they’re heavier and usually provide less usable energy for their rated capacity. Flooded lead acid batteries also require regular maintenance, including water checks and attention to ventilation.

When comparing battery chemistry, look at:

• Recommended depth of discharge
• Cycle rating
• Battery weight and dimensions
• Charging requirements
• Temperature limitations
• Maintenance needs
• Warranty coverage

The battery with the lowest upfront price may not provide the best long term value if it needs to be replaced more frequently or requires more maintenance.

System Voltage

Traditional solar battery banks commonly operate at 12V, 24V, or 48V. The right system voltage depends on the size of the system, the inverter, the charge controller, and the equipment you plan to power.

A 12V battery bank is common in RVs, boats, and smaller solar setups. Larger systems may use 24V or 48V configurations to deliver more power without requiring as much electrical current through the cables.

The batteries, inverter, charge controller, charger, and other electrical components must support the same system voltage. You can’t choose the batteries separately and assume the remaining components will work with them.

Series and Parallel Battery Connections

When a solar battery bank uses more than one battery, the way the batteries are connected affects the system voltage and capacity.

Connecting batteries in series increases the voltage while keeping the amp-hour capacity the same. Connecting them in parallel increases the amp-hour capacity while keeping the voltage the same.

For example, two compatible 12V 100Ah batteries connected in parallel create a 12V 200Ah battery bank. Two compatible 12V 100Ah batteries connected in series create a 24V 100Ah bank.

Follow the battery manufacturer’s limits for series and parallel connections. Use compatible batteries with the same voltage, capacity, chemistry, and model whenever required. Mixing batteries with different capacities, ages, or states of charge can cause uneven performance and shorten the life of the bank.

Solar Charge Controller

The solar charge controller manages the electricity moving from the solar panels to the batteries. It helps deliver the correct charging voltage and protects the batteries from overcharging.

The controller must be compatible with the battery chemistry and system voltage. It also needs to support the solar panel array’s voltage and current.

Two common types of charge controllers are PWM and MPPT. An MPPT controller is often used when greater charging efficiency, a larger solar array, or more flexibility in panel voltage is needed. However, the right choice depends on the size and design of the system.

Before choosing a controller, compare:

• Battery chemistry and charging profile
• Battery bank voltage
• Maximum solar input voltage
• Maximum charging current
• Solar panel wattage
• Temperature compensation requirements
• Manufacturer recommendations

A controller that’s too small may limit how much solar energy reaches the battery bank, even if the panels can produce more power.

Inverter Output

An inverter converts the battery bank’s DC electricity into AC electricity for household appliances, tools, and other standard equipment.

Battery capacity and inverter output serve different purposes. Capacity affects runtime. Inverter output determines whether the system can operate the connected equipment at all.

Check both continuous and surge output. Continuous output tells you how much power the inverter can provide during normal operation. Surge output tells you how much it can handle briefly when equipment starts.

Refrigerators, freezers, pumps, air conditioners, and some power tools may draw significantly more power when their motors or compressors first turn on. Make sure the inverter can handle both the normal running load and the highest expected starting demand.

You should also add up the wattage of everything that may run at the same time. An inverter that can run one appliance may not be able to run that appliance along with several other devices.

Solar Panel Size

The solar panels need to produce enough energy to replace what you take from the batteries. A large battery bank paired with a small solar array may provide plenty of stored power at first but take several days to recharge.

Start by estimating how much electricity you expect to use each day. Then consider how much usable sunlight the panels are likely to receive and how much power the system may lose during charging and conversion.

Panel output can be affected by:

• Clouds and haze
• Shade
• Panel angle and direction
• High temperatures
• Shorter winter days
• Dirt or debris
• Cable length and system losses

Solar panels don’t produce their full rated wattage during every hour of daylight. Treat advertised solar charging times as estimates based on favorable sunlight and panel placement.

Charging Speed

Solar charging speed depends on the size of the battery bank, the amount of energy already used, the panel array, the charge controller, and the available sunlight.

More solar panel wattage may reduce charging time, but only when the charge controller and battery bank can accept the additional current. Adding panels beyond the controller’s input limits won’t necessarily make the batteries charge faster.

It’s also worth considering how else you may recharge the batteries. An RV or marine solar battery bank may also connect to shore power, an alternator charging system, or a compatible battery charger.

Having more than one charging method can be helpful during extended cloudy weather or when your electrical use exceeds what the panels can replace during the day.

Expandability

Think about whether your power needs may increase later. Adding another appliance, spending more time off grid, or extending the time between charging opportunities can all increase the amount of storage you need.

A modular battery bank can make future expansion easier, but only if the batteries and system components support it. The inverter, solar panels, charge controller, cables, fuses, and battery monitoring equipment may also need to be upgraded when capacity increases.

It’s usually easier to plan for expansion before installation than to redesign an undersized system later.

Battery Monitoring

A battery monitor helps you understand how much energy is entering and leaving the battery bank. Depending on the equipment, it may display the state of charge, voltage, current, power use, and estimated remaining runtime.

Voltage alone may not provide a clear picture of the remaining charge in a LiFePO4 battery because lithium batteries maintain relatively steady voltage through much of their discharge.

Ionic deep cycle batteries include Bluetooth monitoring, allowing you to check battery information through the Ionic mobile app. This can make it easier to monitor the individual batteries in a solar storage system.

Temperature and Installation

Batteries and electrical equipment need to be installed in a location that meets the manufacturer’s requirements for temperature, moisture, ventilation, and physical protection.

Some LiFePO4 batteries shouldn’t be charged below freezing unless they include a heater or low-temperature charging protection. High temperatures can also affect battery life and performance.

Keep the batteries protected from rain, standing water, direct heat sources, and physical damage. Secure them properly in RVs, boats, and other moving applications.

Cable size is also important. Undersized cables can create excessive voltage drop and heat, especially in a low-voltage system carrying high current. Use correctly sized cables, fuses, breakers, and disconnects for the expected load.

For larger or permanently installed systems, work with a qualified installer or electrician who understands battery storage and solar equipment.

How Much Solar Battery Capacity Do You Need?

There’s no single battery bank size that works for everyone. The right capacity depends on what you plan to power, how long each device will operate, and how frequently the batteries can recharge.

Start by listing each device and checking its wattage. Multiply the wattage by the number of hours you expect to use it to estimate its daily watt-hour requirement.

For example, a 50W device used for four hours requires approximately 200Wh of energy. Repeat that calculation for each device, then add the results together to estimate your daily electrical use.

Runtime and inverter output should be calculated separately. Your battery bank may have enough stored energy to run a refrigerator for many hours, but the inverter must still provide enough continuous and surge output to start it.

Leave room for system losses, changing weather, and unexpected power use. If the system is critical for refrigeration, medical equipment, communications, or another essential purpose, avoid sizing it around ideal conditions.

Smaller Solar Battery Banks

A smaller solar battery bank may be enough for lights, phones, laptops, internet equipment, fans, and other lower-draw electronics.

These systems can work well in small cabins, boats, camper vans, and RVs with limited electrical use. They may also support a few essentials during a short outage.

Even with a smaller system, make sure the inverter and charge controller are properly sized. A smaller battery doesn’t eliminate the need for compatible electrical components.

RV, Boat, and Cabin Systems

RVs, boats, and cabins often need more capacity because the battery bank may support lighting, water pumps, refrigerators, fans, televisions, electronics, and other equipment throughout the day.

A traditional deep cycle battery bank allows you to customize the system around the available space, desired runtime, system voltage, and charging sources.

For an RV or boat, consider whether the batteries will recharge from solar panels, shore power, the engine alternator, or a combination of sources. Each charging method must be compatible with the LiFePO4 battery bank.

Appliances and Emergency Essentials

Refrigerators, freezers, pumps, certain medical devices, and some power tools may require both greater battery capacity and higher inverter output.

More capacity provides longer runtime. A larger inverter allows the system to operate equipment with greater running and starting power requirements.

Check the normal wattage of everything you plan to connect and identify equipment with a motor or compressor. Make sure the inverter provides enough continuous output for the combined load and enough surge output for the highest starting demand.

A battery bank intended for emergency backup is generally designed to support selected appliances and essentials. Powering an entire home requires a much larger system and professional electrical integration.

When Is a Solar Battery Bank Useful?

A solar battery bank can provide power anywhere grid electricity is unavailable, unreliable, or inconvenient. Unlike solar panels alone, a battery bank allows you to save energy for nighttime, cloudy conditions, and periods when electrical demand exceeds current solar production.

Off-Grid Cabins and Properties

A solar battery bank can provide stored power for lighting, refrigeration, water pumps, internet equipment, and other necessities in a cabin or remote property.

The system can be scaled around the property’s electrical needs, available sunlight, and desired number of backup days. A generator or another charging source may also be included for extended periods of poor solar production.

RV and Marine Use

Deep cycle solar batteries are commonly used for RV house power and marine electrical systems. They can store energy from roof-mounted or portable solar panels and power equipment when shore power isn’t available.

A traditional battery bank also gives you more control over where the batteries, inverter, controller, and panels are installed.

Emergency Backup

A solar battery bank can keep selected essentials running during an outage without requiring gasoline or producing exhaust during battery operation.

Depending on the system size, this may include lights, phones, internet equipment, fans, refrigeration, pumps, and certain medical devices. Solar panels can help restore some of the energy used during a longer outage, although charging speed will depend on weather and panel size.

Workshops and Remote Equipment

Solar battery storage can also support tools, pumps, monitoring systems, gates, communications equipment, and other devices in areas where running utility power would be difficult or expensive.

The system still needs to be sized around the equipment’s normal load, starting requirements, and daily runtime.

Common Solar Battery Bank Mistakes

A little planning can keep you from ending up with a system that’s too small, unnecessarily expensive, or incompatible with the equipment you already own.

One of the biggest mistakes is looking only at battery capacity. A battery bank may store plenty of energy but still lack the inverter output needed to start or run a refrigerator, pump, tool, or other demanding appliance.

Another common mistake is buying the batteries before choosing the system voltage and other components. The batteries, charge controller, inverter, chargers, and solar panel array must all work together.

Avoid mixing batteries with different voltages, capacities, chemistries, models, ages, or charge levels unless the manufacturer specifically allows it. An unbalanced battery bank may not charge and discharge evenly.

It’s also easy to choose more battery capacity than your solar panels can reasonably recharge. If the solar array is too small, it may take much longer to replace the power you’ve used, especially when sunlight is limited. Size the panels around your typical daily power use and the amount of sunlight you can realistically expect.

Don’t use a starter battery as a substitute for a deep cycle solar battery. Starter batteries are designed to provide a brief burst of current for starting an engine. Deep cycle batteries are built to provide power over a longer period and handle repeated discharging.

Finally, don’t overlook installation and safety equipment. Correct cable sizing, circuit protection, battery mounting, disconnects, and weather protection are part of the system, not optional extras.

Find the Right Solar Battery Bank at LithiumHub

The right solar battery bank starts with batteries that match your system voltage, capacity needs, available space, and expected use.

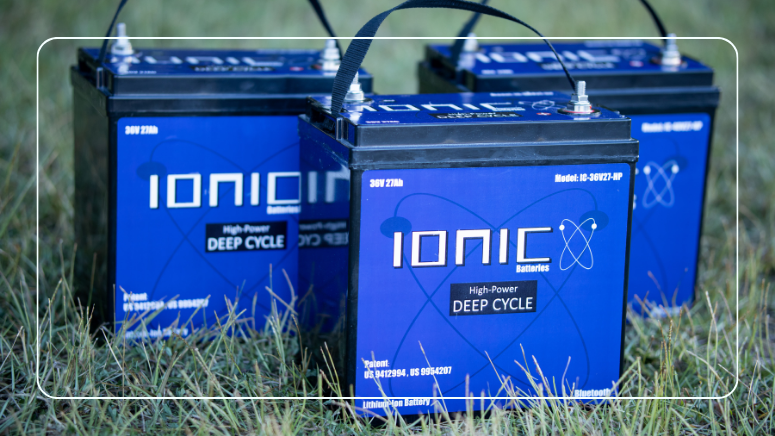

At LithiumHub, we offer Ionic deep cycle LiFePO4 batteries for solar storage, RV house power, marine systems, cabins, emergency backup, and more.

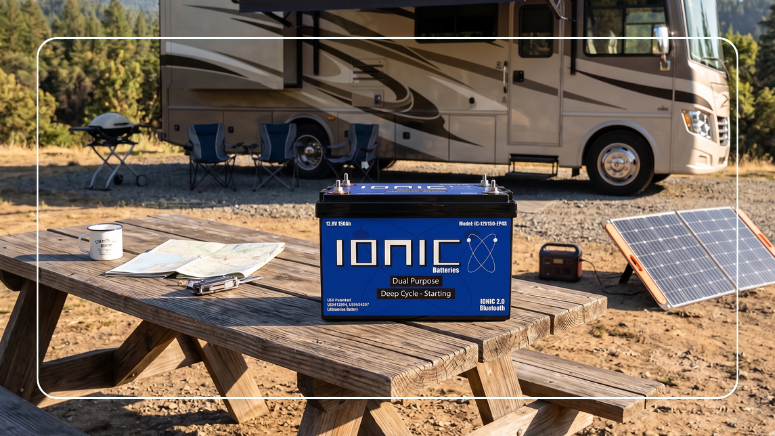

Our Ionic 12V deep cycle batteries come in several sizes, so you can build a battery bank around the amount of power you actually need. The 12V 100Ah battery works well for many RV, boat, cabin, and solar setups, while larger options give you more stored power and longer runtime.

Just make sure the batteries, solar panels, charge controller, inverter, charger, and cables are all compatible. If you’re not sure what you need, the LithiumHub team can help you sort through the options.

Prefer an All-in-One Solar Compatible Option?

A traditional solar battery bank gives you more control over capacity, system voltage, inverter size, installation, charging sources, and future expansion. However, it also requires you to select and install the individual components.

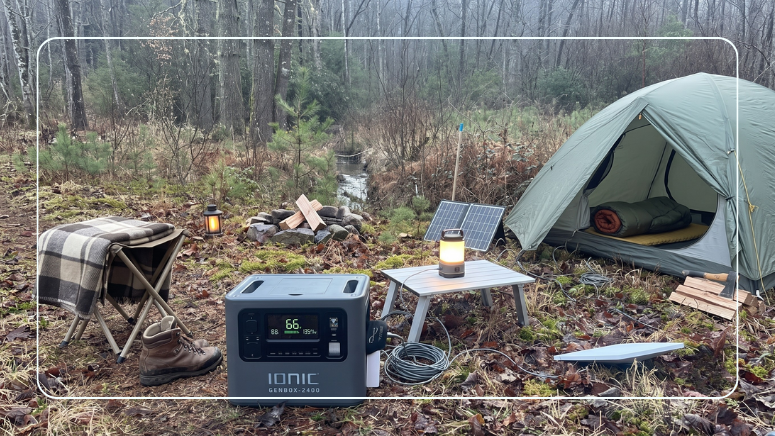

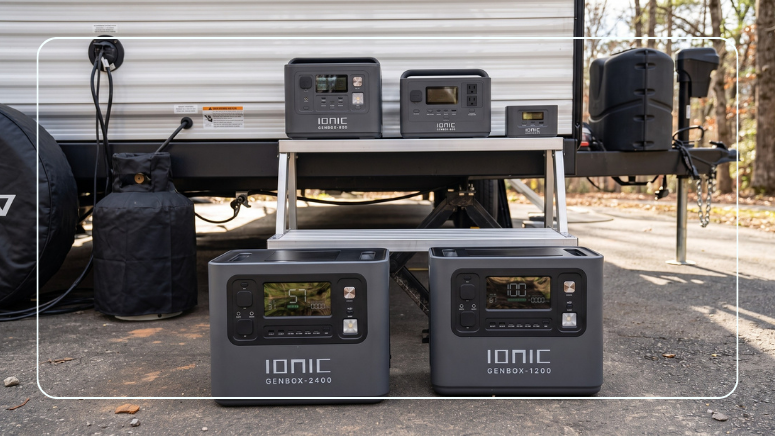

For a simpler option, consider an Ionic GenBox portable power station. GENBOX models combine LiFePO4 battery storage, an inverter, charging controls, outlets, and ports in one unit. They can recharge from a wall outlet, vehicle, or compatible solar panels sold separately.

A GenBox isn’t the same as a traditional deep cycle solar battery bank, but it can be a practical alternative for camping, emergency backup, remote work, RV travel, and other situations where you want portable, solar-compatible power without building a complete system from separate components.

The best solar battery bank is the one designed around the way you’ll actually use it. Start with your expected electrical loads, calculate how much energy you need each day, and check the highest continuous and starting power requirements. From there, you can choose the battery capacity, system voltage, solar array, controller, inverter, and other components needed to build a reliable system without paying for unnecessary equipment.
