Trying to figure out whether to hook up your solar panels in series or parallel? This decision affects the voltage, current, and efficiency of your solar panel system. In this article, we’ll simplify the differences, benefits, and best scenarios for each setup, so you can make a choice that suits your needs!
Key Points
- Series Connections: Increase voltage, keep current steady.
Best for sunny, open areas. - Parallel Connections: Increase current, keep voltage steady.
Best for shaded or variable light conditions. - Series-Parallel Connections: Combine the benefits of both.
Ideal for larger systems or mixed light conditions.
Understanding the Basics
When choosing the best setup for your solar panel system, it’s important to understand the basic differences between series and parallel connections. The main difference is how they handle voltage and current. In a series connection, the voltages from each panel add up while the current stays the same. In a parallel setup, the currents add up while the voltage from each panel stays the same.
Voltage is the electrical potential in your solar panel setup, while current is the amount of electricity flowing through it. These factors are crucial for figuring out how well your setup will work.
Deciding between a series or parallel setup means thinking about things like the voltage and current you need, the power output you want, sunlight conditions, and any space limits you have. It’s also important to make sure all the panels you’re using are compatible with each other.
Series Connections: High Voltage, Steady Current
In a series connection, the voltage from each solar panel adds up, while the current remains constant across all panels. For example, if you connect three 12V panels in series, the voltage becomes 36V (12V x 3), while the current stays the same as that of a single panel.
Benefits of Series Connections:
- Higher Voltage: If you need higher voltage for a particular system (like for an MPPT charge controller), series connections are the way to go. The MPPT controller works best with higher voltage, leading to greater system efficiency.
- Better Efficiency Over Long Distances: Higher voltage means you can use smaller, less expensive wire for longer cable runs, reducing costs for larger systems. (Cost savings depend on system size and specific cable requirements.)
- Better Energy Harvesting in Low Light: With a series setup, your system can perform better in less-than-ideal sunlight conditions (if bypass diodes are used effectively to mitigate shading effects). It continues to generate power even when the panels aren’t receiving full sun.
Downsides of Series Connections:
The major downside is that in a series setup, the current from each panel is limited by the performance of the weakest panel. So, if even one panel is shaded or damaged, the performance of the entire system will suffer. That’s why it’s important to ensure all the panels are of similar quality and output to avoid any performance bottlenecks.
Parallel Connections: Higher Current, Same Voltage
A parallel connection keeps the voltage the same across each panel, but the current adds up. For example, if you connect three 12V panels in parallel, each providing 100Ah, the total current capacity will be 300Ah, while the voltage stays at 12V.
Benefits of Parallel Connections:
- Independent Panel Operation: In a parallel connection, each panel operates independently. If one panel gets shaded or stops working, the others continue to function normally. This makes parallel connections an excellent choice for areas that experience partial shading or unpredictable sunlight.
- Ideal for High Current Needs: If you need a higher current output for devices or appliances that draw more power, parallel wiring will help you meet those demands while maintaining a consistent voltage.
- Works Well with PWM Charge Controllers: Parallel configurations are especially beneficial for systems that use PWM (Pulse Width Modulation) charge controllers, as these controllers regulate the voltage to match the battery’s charging level.
Downsides of Parallel Connections:
The main disadvantage here is that because the current increases, you’ll need thicker cables to safely carry the higher current. This can add some upfront cost to your system. Also, for larger systems with multiple panels, managing connections can become more complex, requiring branch connectors or combiner boxes.
Series-Parallel Configurations: The Best of Both Worlds
For larger solar setups or when you need both high voltage and high current, a series-parallel configuration might be your best bet. In this configuration, you connect multiple strings of panels in series and then wire those strings together in parallel.
For example, you could wire four strings of three 12V panels in series (resulting in 36V per string) and then wire those strings in parallel to increase the current. This combination allows you to balance the efficiency of high voltage with the power of increased current.
Why Choose Series-Parallel?
This hybrid setup offers greater flexibility and resiliency. If one string of panels experiences shading, the other strings continue to work, ensuring the system still performs well. It’s an excellent choice for off-grid systems, larger solar arrays, or setups where efficiency and power output are both crucial.
Which Connection Type is Right for You?
The decision between series, parallel, or series-parallel depends on your unique energy needs and environment. Here are some factors to consider when making your choice:
- Series Connection: Choose this option if you have a larger, sunny setup and need higher voltage to run an MPPT controller efficiently. Series connections are ideal for systems where shading is minimal or not an issue.
- Parallel Connection: This setup is great if you expect shading, live in an area with inconsistent sunlight, or need higher current output. If you need to keep your panels independent from each other, parallel is your go-to configuration.
- Series-Parallel Configuration: For larger systems or when you need both high voltage and high current, a series-parallel setup offers the best of both worlds. It balances the benefits of both configurations, offering versatility and performance.
Summary: Choosing the Right Solar Panel Configuration
When deciding between series, parallel, or series-parallel configurations for your solar setup, it’s essential to match your wiring choice to your energy needs and environmental factors:
- Series connections are best for maximizing voltage and are ideal for systems in sunny, unobstructed areas where shading isn’t an issue. They offer efficiency and cost savings, especially for larger systems with long cable runs.
- Parallel connections increase current while maintaining the same voltage, making them perfect for shaded areas or systems with varying sunlight. This setup allows for each panel to operate independently, minimizing the impact of shading on overall system performance.
- Series-parallel configurations combine the benefits of both, providing the flexibility to handle both high voltage and current demands. They offer an excellent balance for large solar systems or setups with mixed sunlight conditions.
Choosing the right connection type is crucial for optimizing your solar system’s performance. Consider your location, panel placement, and energy needs to select the best setup for your situation.
How Does This Affect Batteries?
Your choice of series or parallel wiring for solar panels directly impacts the energy sent to the charge controller, which regulates the voltage and current before delivering it to the battery bank. The battery bank stores the energy for later use, and just like panels, batteries can be wired in series or parallel to match system requirements.
Power Your Solar Setup with LithiumHub’s Solar Batteries
No matter which solar panel configuration you choose, it’s essential to pair it with the right battery to store and deliver the power you generate. That’s where our high-performance solar batteries come in.

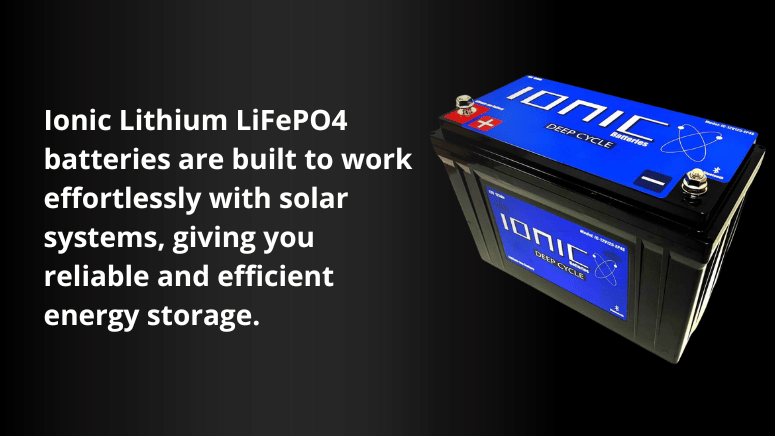

Ionic Lithium LiFePO4 batteries are built to work effortlessly with solar systems, giving you reliable and efficient energy storage. Here’s why our solar batteries may be the ideal choice for your setup:
