Ionic Lithium 12V 60Ah | LiFePO4 Deep Cycle Trolling Motor Battery + Bluetooth

Fast Free Shipping in the U.S.
11-year warranty
CODE: DAD20
FOR ADDITIONAL 20% OFF
CODE: DAD10
FOR ADDITIONAL 10% OFF
  • 2-4x the service life (3000-5000 cycles)
  • 70% lighter than gel batteries or your typical traditional lead acid battery & more compact
  • Great for trolling motors, RVs, floor sweepers, lift gates, UPS systems, with solar panels/solar energy storage, & more
  • Bluetooth technology allows battery status monitoring in real time
  • Advanced Battery Management Systems (BMS) with power terminal cut-off & recovery
  • Built-in cold weather protection – Does not take a charge if temperatures are below 32°F (0°C) in our case. Some variations with part tolerances.
  • Cell balancing & low voltage/over voltage protection
  • Short-circuit protection
  • Plug & play ready – easy drop in replacement
  • Connect up to four in series & unlimited in parallel
  • Energy efficient w/ 99% Depth Of Discharge (DOD)
  • Outstanding 11 year warranty for ultimate peace of mind
  • Most compatible with Ionic, Noco Gen Pro, Dual Pro PS/ Auto, Minn Kota Precision, Pro Mariner/Pro Tournament Elite, Stealth, Troll Bridge DC, & Power Pole chargers

Original price was: $449.00.Current price is: $349.00.

Availability: 1966 in stock

Warranty: 11 Years

DC/DC Onboard Ionic Transfer Charger (12V to 36V)

  • Free & fast shipping across the U.S.
  • Equipped to charge 36V trolling batteries from a 12V starter battery
  • Perfect for marine use, enhancing trolling battery life & performance
  • Add extra trolling time to your fishing adventures with this DC to DC charger
  • Reliable in diverse conditions, like wind or high currents, ensuring consistent operation
  • Add more running time to those long center console trips without the added weight of bigger batteries
  • Our DC to DC chargers come with a 1-year warranty for peace of mind
  • Dimensionally compact at 185x105x64 mm for versatile installation
  • Compact and efficient design streamlines the charging process
  • Very easy to install and handle on boats
  • Ultra-lightweight onboard battery charger

Ionic Four Bank Charger

Keep Your Boat Batteries Charged Conveniently

  • Charges 12V Lithium (LiFePo4) batteries up to 4 banks at 10A the same time.
  • LED: Green indicates Charging Completed.  Red indicates Charging.
  • LED: Green indicates Fully Charged.  Red indicates Charging.  Amber indicates Standby.
  • Lightweight and low profile design
  • Can also be used for 2- 3 bank charging system.
  • Can be used to charge lead-acid or AGM batteries.
  • Ionic Lithium APP shows charge level and time to charge when using Ionic Lithium Batteries.
  • 60in (5ft) cable length on each bank
  • For safety reasons, the charger times out and stops charging after 72 hours of continuous use. This is indicated by blinking red LEDs. To activate the charger again, simply disconnect and reconnect the power cable.
- +
CODE: DAD20
FOR ADDITIONAL 20% OFF
CODE: DAD10
FOR ADDITIONAL 10% OFF
  • 2-4x the service life (3000-5000 cycles)
  • 70% lighter than gel batteries or your typical traditional lead acid battery & more compact
  • Great for trolling motors, RVs, floor sweepers, lift gates, UPS systems, with solar panels/solar energy storage, & more
  • Bluetooth technology allows battery status monitoring in real time
  • Advanced Battery Management Systems (BMS) with power terminal cut-off & recovery
  • Built-in cold weather protection – Does not take a charge if temperatures are below 32°F (0°C) in our case. Some variations with part tolerances.
  • Cell balancing & low voltage/over voltage protection
  • Short-circuit protection
  • Plug & play ready – easy drop in replacement
  • Connect up to four in series & unlimited in parallel
  • Energy efficient w/ 99% Depth Of Discharge (DOD)
  • Outstanding 11 year warranty for ultimate peace of mind
  • Most compatible with Ionic, Noco Gen Pro, Dual Pro PS/ Auto, Minn Kota Precision, Pro Mariner/Pro Tournament Elite, Stealth, Troll Bridge DC, & Power Pole chargers
11 warranty icon
11 Year Warranty
BLUETOOTH CONNECTION
Bluetooth Enabled
iPhone/Android App
iPhone/Android App
Free Shipping
Free Shipping

50%

Lighter

0%

MAINTENANCE

200%

POWER

500%

CHARGING

Product Description

ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth

ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth
ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth ionic lithium 12v 60ah | lifepo4 deep cycle trolling motor battery + bluetooth

Ionic 12V 60Ah Lithium Battery: Exceptional Value & Unrivaled Performance

Trolling motors can easily glide and maneuver all day when powered by our 12V 60ah lithium battery. And don’t forget about our Ionic Bluetooth App, which makes it easier than ever to track the life of your lithium batteries. All from your smartphone! The Ionic 12V 60Ah Lithium Deep Cycle Battery is one of the most advanced lithium deep cycle batteries available. It has an impressive 11-year battery warranty to ensure your satisfaction and peace of mind. We’re in it for the long haul.

This Lithium Iron Phosphate Battery Features World-Class Safety Measures

The Lithium 12V 60Ah Battery is ideal for trolling motor systems, electric scooter systems, and other deep cycle systems as well as backup power and off-grid applications. All our Ionic batteries feature an integrated microprocessor-controlled battery management system (BMS). Have you heard of a smart battery? This is it! Our advanced system monitors critical operating parameters such as voltage, current, & internal temperatures. (Functions that are vital for safe charging and discharging.) So sit back and relax…your battery can take it from here. Need to connect more than one battery? No problem! Ionic deep cycle batteries can be connected in series (up to four) and in parallel, as many as needed.

Outlast Lead Acid Batteries With Longer Life & More Efficiency

On average, our 12V 60Ah battery lasts a whopping 3,000 to 5,000 cycles. That equates to roughly 10 years of battery use (and often longer). Cycles are the number of times your battery is fully charged and discharged. Most lead acid batteries have a usable capacity of 50-60%, meaning you have to charge them much more frequently. Ionic Lithium LiFePO4 batteries capacity? 99%. Talk about efficiency! In addition, Ionic lithium batteries can perform well in a wider range of temperatures. They can discharge between –20°C to 60°C (–4°F to 140°F) and charge between temperatures 0°C to 45°C (32°F to 113°F). And don’t worry, if your battery is too cold to charge, the system will automatically recognize this.

Incomparable Weight To Power Ratio of Lithium Batteries

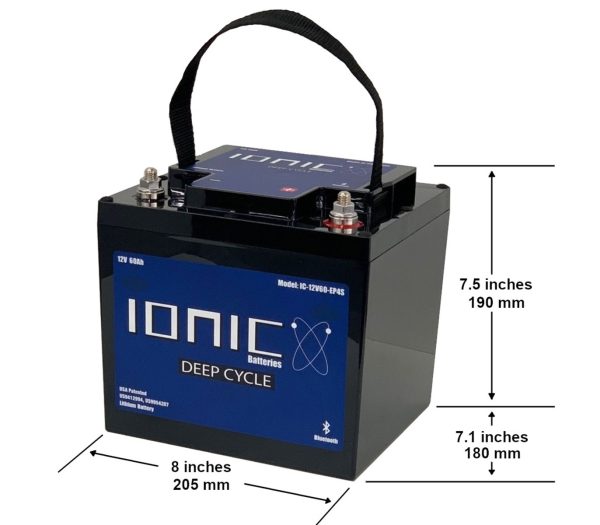

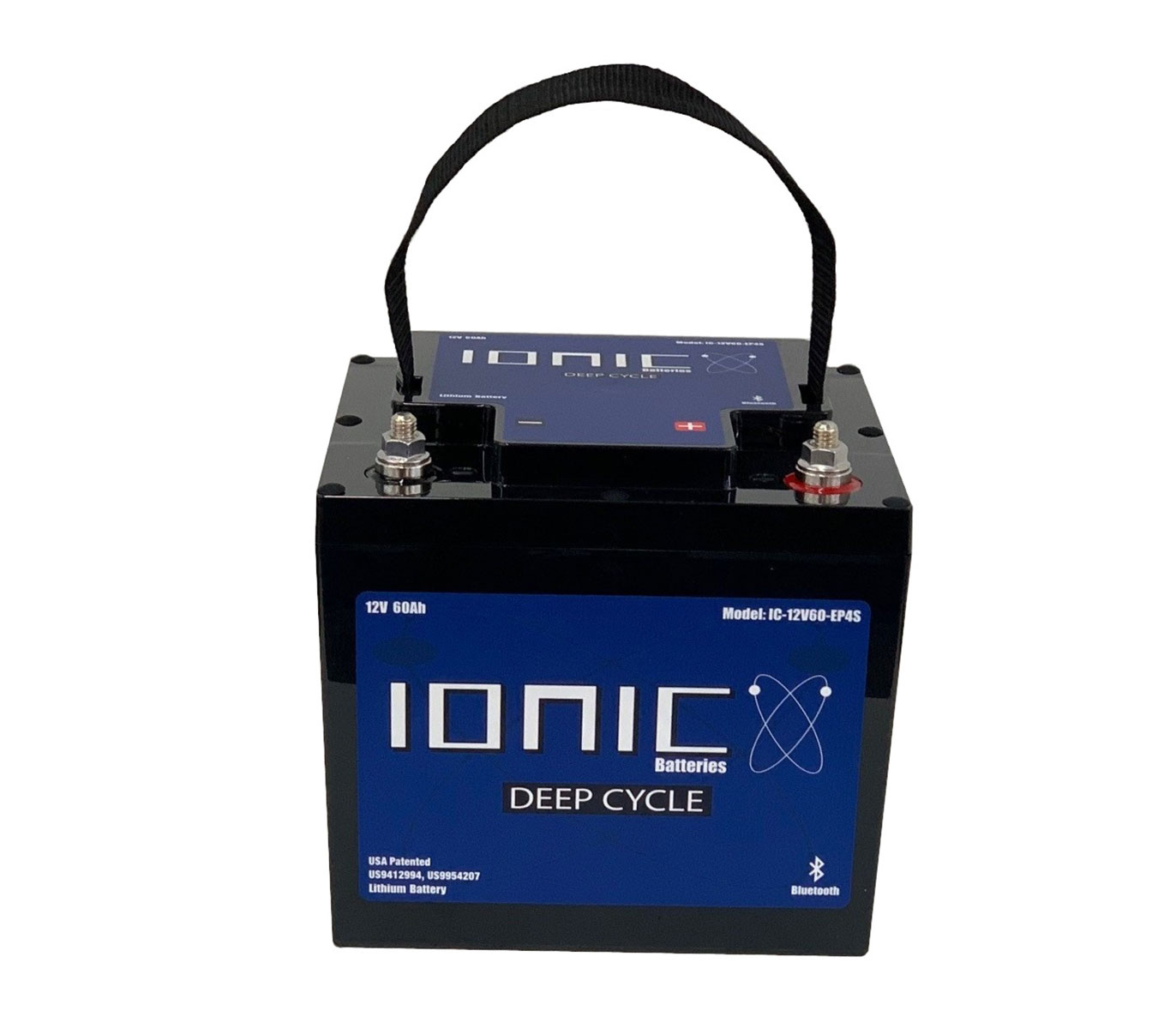

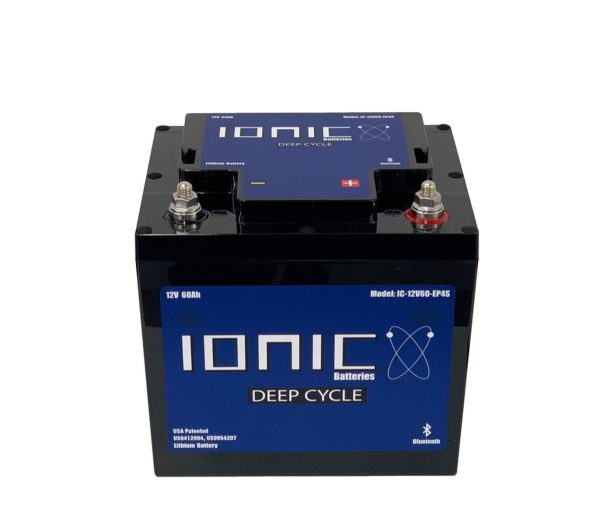

Our Ionic Lithium 12V 60Ah battery measures: 7.8″ (L) x 6.8″ (W) x 7.6″ (H). And it weighs a very manageable 16.7 lbs. Unlike lead-acid batteries that come fixed, our 12V 60Ah battery comes with M6 screws that allow it to be installed in any direction. With an impressive 1-3% monthly discharge rate, your cycle will go much further. On the other hand, lead-acid batteries usually discharge 30% per month.

Bluetooth Real-Time Battery Monitor

Wish you had instant access to real-time data showing your battery status? Our Ionic Blue Batteries app provides exactly that in your mobile device. Now, you have immediate access to all of your battery information. That includes low voltage and high voltage status, how much time is left on your charge, high and low temperature discharge, and so much more.

12V 60Ah Lithium Iron Phosphate Battery Common Uses

Looking for an incredibly lightweight and compact 12V battery? Our 12V 60Ah battery may very well be your best answer! Want to propel a small boat or fishing kayak (up to 50hp) with a trolling motor? Many of our customers purchase two or three 12V 60Ah trolling motor batteries to get the job done. Are you a solar system enthusiast? Beyond your trolling motor, it can also be the perfect fit for mini solar system setups, small commercial equipment, and more. On the hunt for other ways to use your 12V 60Ah battery? Be sure to check out our blog post: 9 Exciting Ways To Use Your 12V Lithium Batteries.

  • The max charge voltage is 14.6V, with a 10.5 discharge cut-off voltage.
  • The max charge current is 60 amps and the max discharge is 60 amp /170 amps (3s).
  • You can use solar chargers! (Not sure which charger is best? Check out this post.)
  • You can use most standard lead-acid chargers without a “Desulfate” mode. (As long as the current levels do not exceed the lithium battery charge requirements).
  • You can completely charge your 12V 60Ah battery with a standard lead-acid charger that achieves 14.4-14.6 volts.
  • Battery chargers with a voltage of fewer than 13.6 volts will only charge the battery to 50% capacity or less.
  • Looking for a 12V 100Ah lithium battery instead? Click here

Further questions? Contact our experts here.

Has Bluetooth connection

Has Bluetooth connection
Can be charged in series

Can be charged in series
Can be charged in parallel

Can be charged in parallel
Free Shipping

Free Shipping
Lithiumhub 30 Day Return Policy

30 Day Return Policy
11 Year Battery Warranty

11 Year Battery Warranty

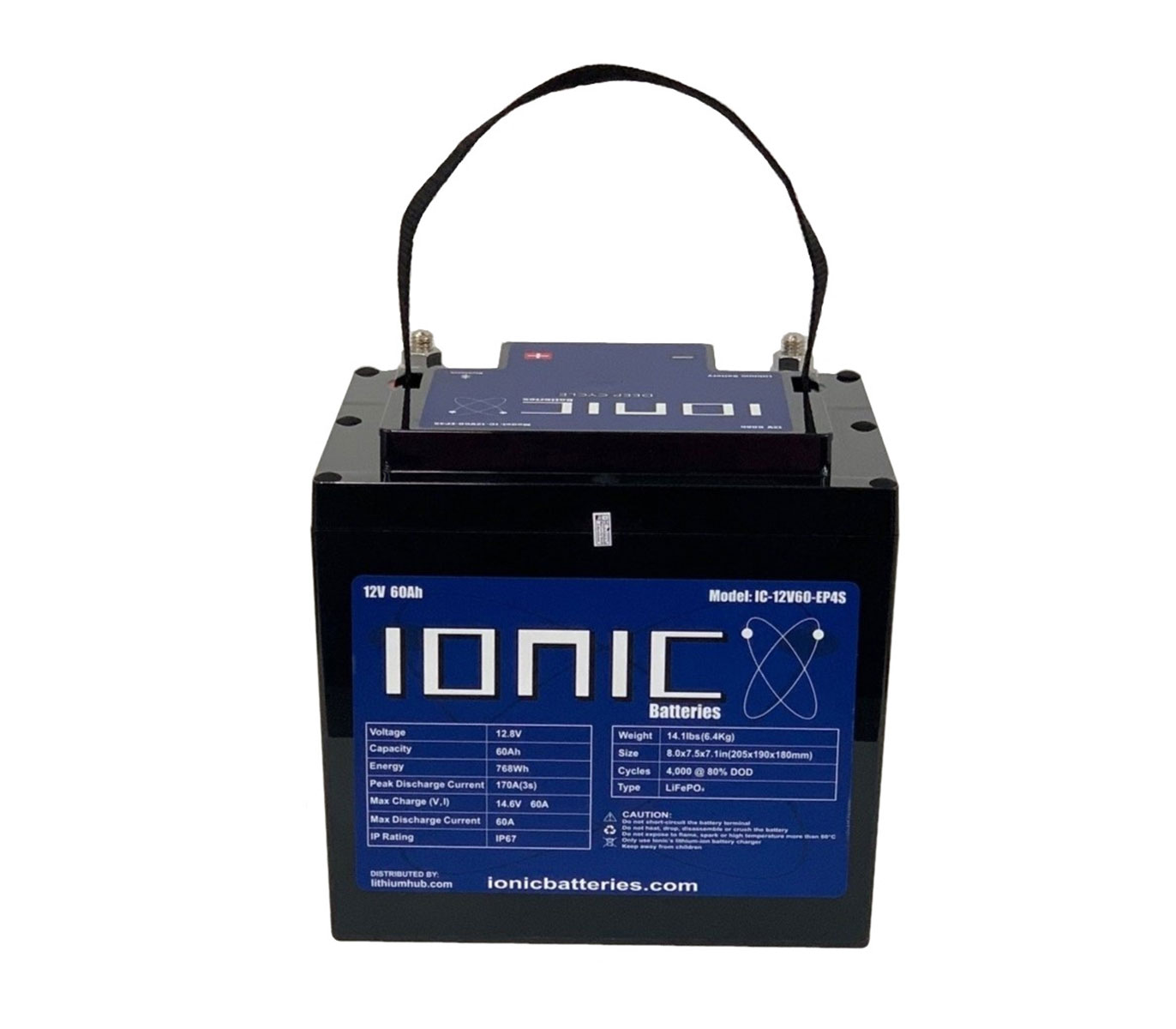

Model IC-12V60-EP4S
Voltage 12V
Capacity 60Ah, 768Wh
Chemistry LiFePO4
Weight 16.7lbs (7.57kg)
Dimensions 7.87″ (L) x 6.87″ (W) x 7.62″ (H)
199x174x193mm
Life Cycles 3,000 @ 80% DOD
BMS Yes (Internal)
Max Charge Voltage 14.6±0.1V
Discharge Cut-Off Voltage 10.5V
Max Charge Current 60A
Max Discharge Current 60A
Peak Current (3S) 170A (3S)
Operating Temperature -20~60℃
-4℉~140℉
BCI Group Size 25
Terminal UNC-M6
Water Rating Water Resistant

Please read our frequently asked questions page for answers commons questions regarding lithium ion batteries.

Spec Sheet

Ionic Deep Cycle Manual

Bluetooth Guide

Performance Curve

ModelIC-12V60-EP
Voltage12V
Capacity60Ah
Energy768 Wh
HeatedNo
BluetoothYes
Water RatingIP67
BCI Group Size25
Compatible WithKayak, Marine, RV, Solar, Trolling Motor
ChemistryLiFePO4
Weight16.7 lbs (7.57 kg)
Dimensions7.87" (L) × 6.87" (W) × 7.62" (H)
200x174x194 mm
Cycle Life3,000 cycles @ 80% DOD
Max Continuous Discharge60A
Peak Discharge Current170A (3s)
Max Charge Current60A
Max Charge Voltage14.6V ± 0.1V
BMS Discharge Voltage Cut-Off~8.0V
Discharge Temperature Range-4°F to 140°F (-20°C to 60°C)
Charge Temperature Range32°F to 113°F (0°C to 45°C)
Self-Discharge Rate1-3% per month
Max in Series4
Max in ParallelUnlimited
Terminal TypeUNC-M6
Internal BMSYes

Frequently Asked Questions

Will this battery work with my trolling motor?

Yes. The 12V 60Ah is purpose-built for 12V trolling motors and is a great fit for small boats and fishing kayaks rated up to 50hp. With 60A continuous discharge and 170A peak (3s), it covers the draw of most 12V trolling motors at full thrust. Many LithiumHub customers run two or three in parallel for full-day fishing trips.

How many of these can I connect in parallel for longer run time?

You can connect as many as needed in parallel to extend run time, and up to 4 in series for higher-voltage systems (24V, 36V, or 48V). See our Series and Parallel Connection guide for wiring diagrams.

What chargers are compatible with this battery?

Compatible chargers include Ionic, NOCO Gen Pro, Dual Pro PS/Auto, Minn Kota Precision, Pro Mariner / Pro Tournament Elite, Stealth, Troll Bridge DC, and Power Pole. Any LiFePO4-compatible charger that delivers 14.4 – 14.6V and stays within the 60A max charge current will work. You can also use most lead-acid chargers that reach 14.4 – 14.6V — just avoid any with a “Desulfate” mode. Chargers below 13.6V will only charge the battery to 50% capacity or less.

Will this battery fit my Group 25 battery tray?

Yes. The battery is BCI Group 25 sized at 7.87″ × 6.87″ × 7.62″ (199 × 174 × 193 mm) and weighs only 16.7 lbs — a true drop-in replacement for a Group 25 lead-acid battery. The M6 terminals also allow installation in any orientation, unlike fixed lead-acid batteries.

How many charge cycles will this battery deliver?

The 12V 60Ah is rated for 3,000 cycles at 80% depth of discharge — and lasts even longer at lower discharge depths, with a useful service life of 2-4x a comparable lead-acid battery (3,000–5,000 cycles total).
