EV Charger

  • Enables quick, reliable charging for your electric car or plug-in hybrid.
  • J1772-2009 charging cable will fit any electric vehicle, no matter the brand or the age of the car.
  • Charging cable features 240V, 16/20 Amp charging and provides a rapid 4.80 kW/hour.
  • Most electric vehicles will charge up to 14 miles per hour.
  • Cable is 25 feet long, the Level 2 charger works with Nema 6/20 plugs only.
  • The control box is IP55 enclosure rated.
  • Meeting SAE J1772 & NEMA 5-20 standards, plugs are compatible with all major EV automakers and multiple power sources.
  • Meticulously tested and comes with a 1 Year No-Hassle Warranty.

$179.00

Availability: In stock

Warranty: 12 Months

The EV Level 2 Charger enables quick, reliable charging for your electric car or plug-in hybrid. Our Standard J1772-2009 charging cable will fit any electric vehicle, no matter the brand or the age of the car.

Compatible with all plug-in EVs, including Our EV charger fits most EV cars currently, such as Nissan LEAF, Prius Prime, Chevy Volt, Fiat 500e, Ford Focus Electric, Toyota Prius, etc

Level 2 charging cable features 240V, 16/20 Amp charging and provides a rapid 4.80 kW/hour. With level 2 charging at 20A, most electric vehicles will charge up to 14 miles per hour. That is almost 3 times faster than your car’s original charger! The cable is 25 feet long which allows for quick and convenient EV charging in your home. The Level 2 charger works with Nema 6/20 plugs only.

Level 2 charging cable features 240V AC, 16 default but selectable at 20A, 16A, 12A or 10A charging current options. At 20A provides a rapid 4.80 kW/hour with level 2 charging. Most electric vehicles will charge up to 14 miles per hour. That is almost 3 times faster than your car’s original charger! The cable is 25 feet long which allows for quick and convenient EV charging in your home. The Level 2 charger works with Nema 6/20 plugs only

Level 1 adapter cable features 120V AC, 16 default but selectable at 20A, 16A, 12A or 10A charging current options. At 20A provides a 2.40 kW/hour with level 1 charging. The 1 foot long adapter enables you to charge your electric car via a standard 120V (Nema 5/15) wall plug. Faster than most other Level 1 chargers

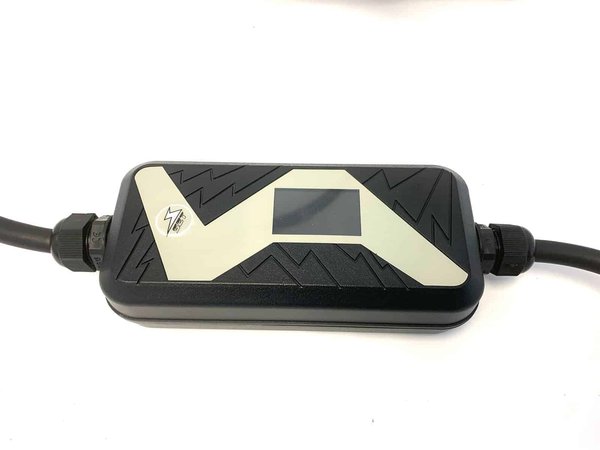

Each charging set comes with a control box with indicators for Voltage, Current, Time Charging, Temperature, Connection, Charging and fault so that you always know the status of your charge. The control box is IP55 enclosure rated.
Meeting SAE J1772 & NEMA 5-20 standards, the plugs are compatible with all major EV automakers and multiple power sources: a Dryer, RV-type or regular wall outlet with adapters

EV Chargers have been meticulously tested and come with a 1 Year No-Hassle Warranty. We fully stand behind our products and are always available for our customers. If anything is not to your complete satisfaction.

Product Description

The EV Level 2 Charger enables quick, reliable charging for your electric car or plug-in hybrid. Our Standard J1772-2009 charging cable will fit any electric vehicle, no matter the brand or the age of the car.

Compatible with all plug-in EVs, including Our EV charger fits most EV cars currently, such as Nissan LEAF, Prius Prime, Chevy Volt, Fiat 500e, Ford Focus Electric, Toyota Prius, etc

Level 2 charging cable features 240V, 16/20 Amp charging and provides a rapid 4.80 kW/hour. With level 2 charging at 20A, most electric vehicles will charge up to 14 miles per hour. That is almost 3 times faster than your car’s original charger! The cable is 25 feet long which allows for quick and convenient EV charging in your home. The Level 2 charger works with Nema 6/20 plugs only.

Level 2 charging cable features 240V AC, 16 default but selectable at 20A, 16A, 12A or 10A charging current options. At 20A provides a rapid 4.80 kW/hour with level 2 charging. Most electric vehicles will charge up to 14 miles per hour. That is almost 3 times faster than your car’s original charger! The cable is 25 feet long which allows for quick and convenient EV charging in your home. The Level 2 charger works with Nema 6/20 plugs only

Level 1 adapter cable features 120V AC, 16 default but selectable at 20A, 16A, 12A or 10A charging current options. At 20A provides a 2.40 kW/hour with level 1 charging. The 1 foot long adapter enables you to charge your electric car via a standard 120V (Nema 5/15) wall plug. Faster than most other Level 1 chargers

Each charging set comes with a control box with indicators for Voltage, Current, Time Charging, Temperature, Connection, Charging and fault so that you always know the status of your charge. The control box is IP55 enclosure rated.
Meeting SAE J1772 & NEMA 5-20 standards, the plugs are compatible with all major EV automakers and multiple power sources: a Dryer, RV-type or regular wall outlet with adapters

EV Chargers have been meticulously tested and come with a 1 Year No-Hassle Warranty. We fully stand behind our products and are always available for our customers. If anything is not to your complete satisfaction.

Additional Information

Weight6.5 lbs
Product Part1. Charge Plug
2. Electric Vehicle Charge Controller
3. Charge Cable
4. Power Plug
Rated Input Voltage85~265V AC
Rated Output Voltage85~265V AC
Rated CurrentDefault 16A (Adjustable 10A,m 13A, 20A)
Quick Charge3840W (Default 16A)
Insulation Resistance>1000MΩ (DC500V)
Contact Resistance0.5mΩ MAX
Max. Afforadable Voltage2000V
Housing Fire RatingUL94V-0
Wiring Harness Size3*2.5mm2+2*0.5mm2
Unit N.W.2.02KG
StandardSAE J1772
IEC 62196-2
GB/T2023.2-2015
